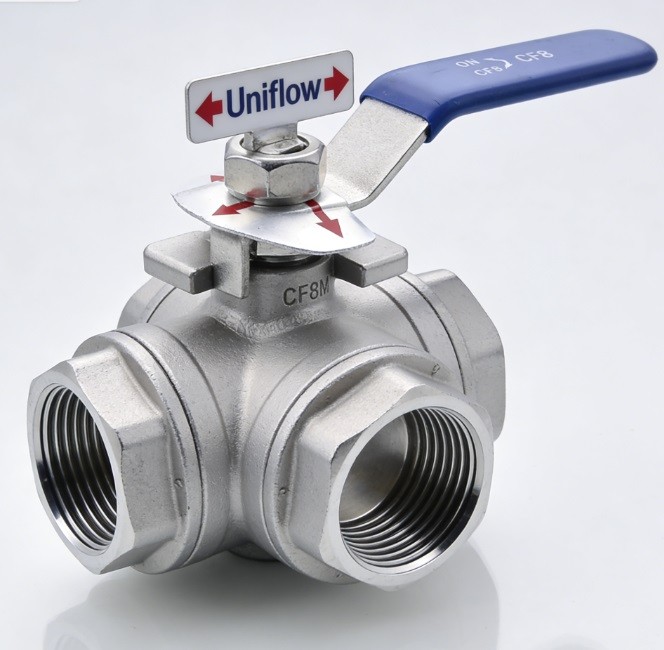

The 3-Way Reduced Bore Threaded Ball Valve is a multi-port valve used to divert, mix, or shut off flow between three pipelines. The "Reduced Bore" design means the internal flow path is slightly smaller than the pipe diameter, making the valve more compact and economical. Available in L-Port (for diverting) or T-Port (for mixing), it features NPT/BSP threads for easy installation. It is ideal for space-constrained systems in chemical and water treatment.
Technical Attributes
1,Flow Pattern,L-Port (Diverting) or T-Port (Mixing/Diverting)
2,Bore Design,Reduced Bore (Compact & economical)
3,Body Type,3-Way Multi-Port (T-Type or L-Type)
4,Size Range,1/4" to 2" (DN8 to DN50)
5,End Connection,NPT / BSP / BSPT (Female Threaded)
6,Pressure Rating,1000 PSI (WOG) / PN63
7,Body Material,Stainless Steel (CF8M/316) or Carbon Steel (WCB)
8,Seat Material,PTFE / RPTFE (Reinforced)
9,Stem Design,Blow-out Proof with dual O-rings
10,Handle Operation,90∘ or 180∘ turn with positioning stop
11,Mounting Pad,ISO 5211 (Ready for electric/pneumatic actuator)
12,Working Temp.,−20∘C to +150∘C
