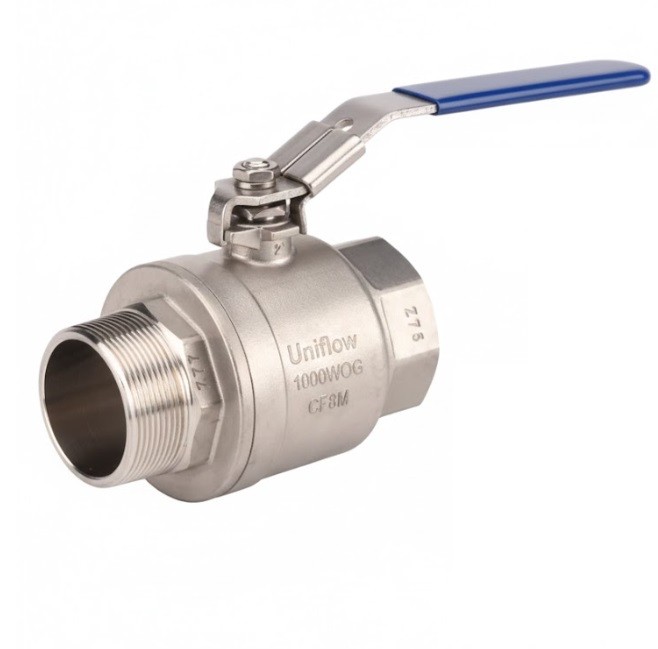

2-Piece Full Bore F/M Ball Valves feature a versatile "Female-to-Male" threaded design, allowing direct connection to tanks or manifolds without extra fittings. The 2-piece construction enables a Full Bore internal diameter, matching the pipe size for zero flow restriction and maximum efficiency. Built from 316 Stainless Steel and rated for PN 63 (1000 PSI), these valves provide a robust, leak-proof solution for high-pressure industrial, chemical, and utility applications.
Technical Attributes: 2-Piece Full Bore F/M Ball Valve
Body Construction,2-Piece Threaded Body (Split Design)
Bore Design,Full Bore (Pipe ID Matching)
Thread Configuration,Female to Male (F/M)
Pressure Rating,PN 63 (1000 PSI / 6.3 MPa)
Material Grade,ASTM A351-CF8M (316 Stainless Steel)
Size Range,1/4" to 4" (DN8 - DN100)
Seat Material,PTFE or RPTFE (Reinforced)
Stem Design,Internal Entry / Blow-out Proof
Temperature Range,−20∘C to +180∘C
Handle Style,Lever Handle (Lockable)
Testing Standard,EN 12266-1 / API 598
Compliance,PED 2014/68/EU
