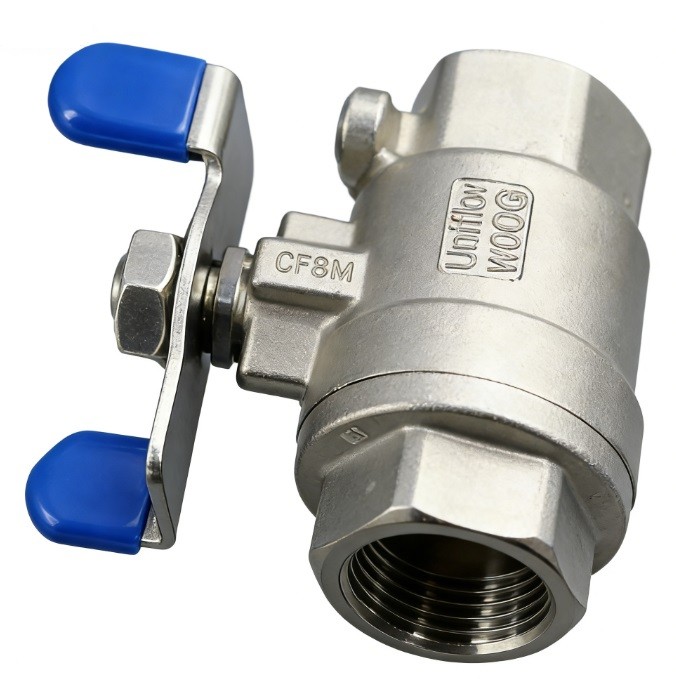

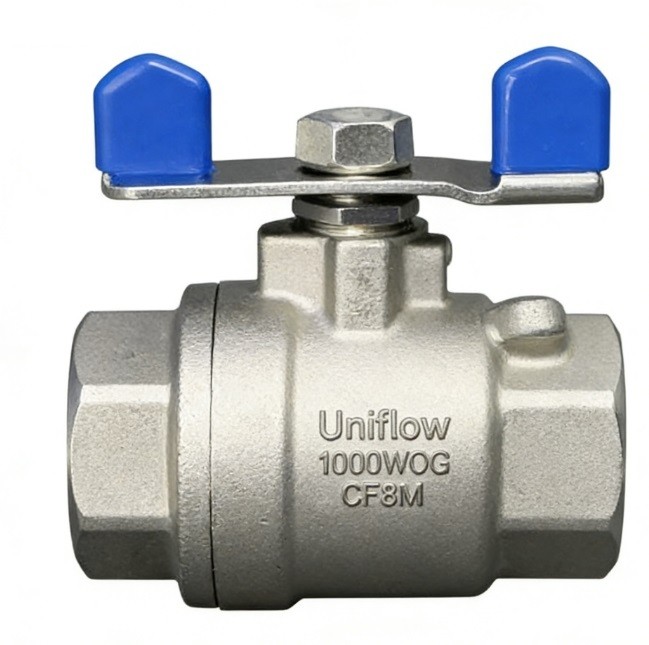

2-Piece Full Bore Ball Valves (F/F) with Butterfly Handles combine high flow efficiency with an ultra-compact footprint. Unlike 1-piece versions, the 2-piece design allows for a Full Bore, ensuring zero pressure drop across the valve. The "Butterfly" (T-handle) is ideal for tight spaces where a standard lever would be obstructed. Built from 316 Stainless Steel and rated for PN 63 (1000 PSI), these valves provide a robust, leak-proof solution for gas and liquid isolation.
Technical Attributes: 2-Piece Full Bore Ball Valve (Butterfly Handle)
Body Construction,2-Piece Threaded / Split Body
Bore Design,Full Bore (Pipe ID matching)
Handle Type,Butterfly / T-Handle / Wing Handle
Pressure Rating,PN 63 (1000 PSI / 6.3 MPa)
Material Grade,AISI 316 (ASTM A351-CF8M)
End Connections,Female to Female (F/F) NPT or BSP
Size Range,1/4" to 4"
Seat Material,PTFE (Pure Teflon)
Stem Design,Blow-out Proof Stem
Temperature Range,−20∘C to +150∘C
Handle Material,Stainless Steel or Coated Aluminum
Standard Testing,API 598 (Shell/Seat Leakage)
