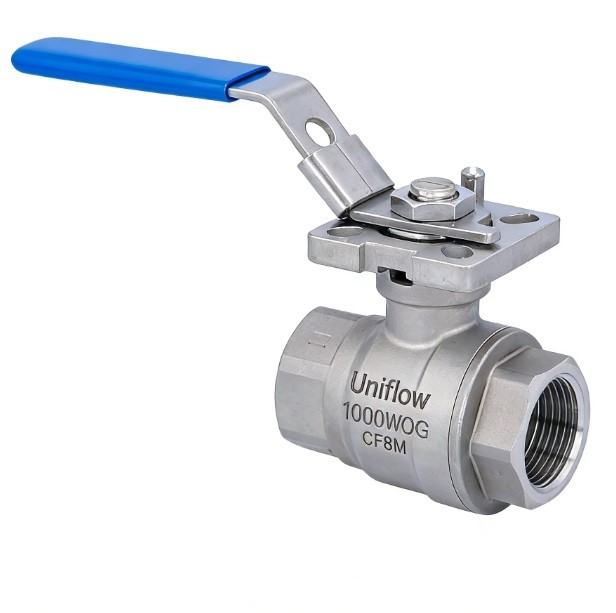

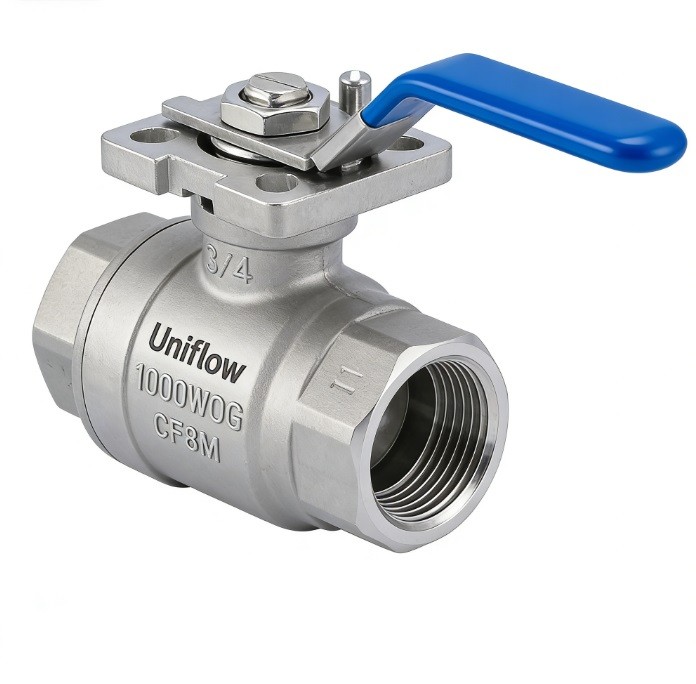

2-Piece Full Bore Ball Valves (Direct Mount) are engineered for seamless automation. Featuring an integrated ISO 5211 mounting pad, they allow pneumatic or electric actuators to be bolted directly to the valve without bulky brackets or couplings. The "Full Bore" design ensures zero flow restriction, while the 2-piece 316 Stainless Steel body provides a robust, high-pressure solution (PN 63). They are the industry standard for automated process control in chemical and water treatment
Technical Attributes: 2-Piece Full Bore Ball Valve (Direct Mount)
Body Construction,2-Piece Split Body (Investment Cast)
Mounting Pad,ISO 5211 Standard (Direct Mounting)
Bore Design,Full Bore (Unrestricted Flow)
Pressure Rating,PN 63 (1000 PSI / 6.3 MPa)
Material Grade,ASTM A351-CF8M (316 Stainless Steel)
End Connections,"Female to Female (F/F) BSPP, BSPT, or NPT"
Stem Design,Square Stem (for direct actuator engagement)
Stem Safety,Blow-out Proof with Anti-Static Device
Seat Material,TFM 1600 or RPTFE (High-cycle life)
Temperature Range,−20∘C to +180∘C
Testing Standard,API 598 / EN 12266-1
Automation Compatibility,Pneumatic (DA/SR) or Electric Actuators
