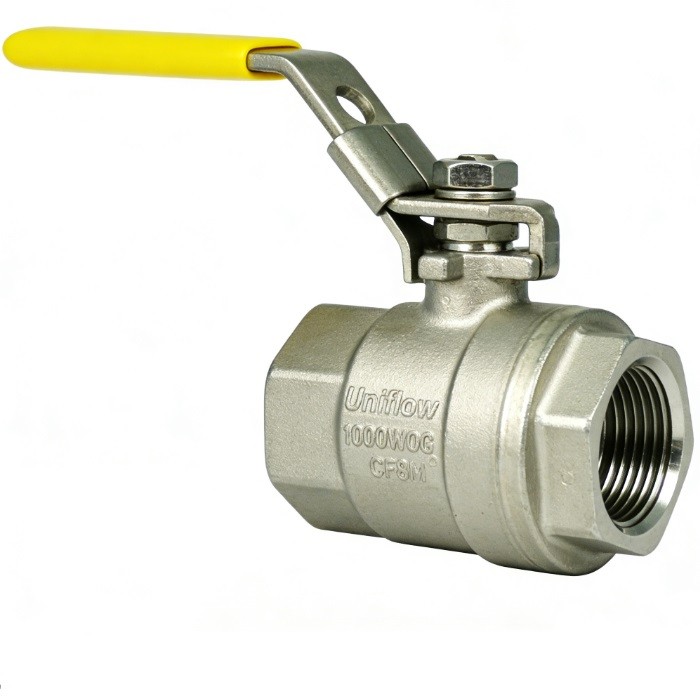

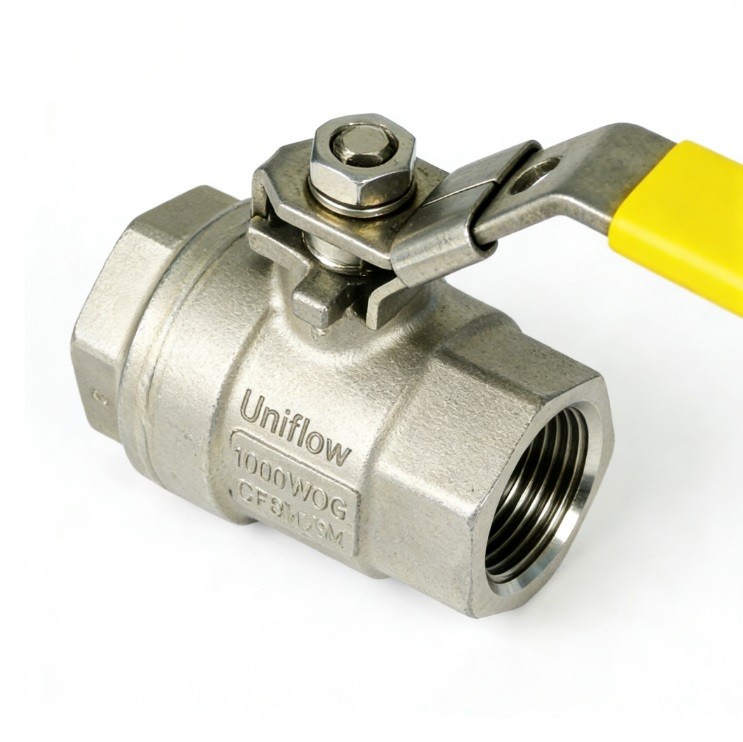

2-Piece Full Bore Ball Valves (F/F Economic) offer an ideal balance of performance and value. The "2-Piece" design allows for a Full Bore internal diameter, matching the pipe size to ensure zero flow restriction and minimal pressure drop. The "Economic" series utilizes a streamlined casting to reduce weight and cost while maintaining a PN 63 (1000 PSI) rating. Made from 316 Stainless Steel, these valves are reliable for water, oil, and gas (WOG) utility applications
Technical Attributes: 2-Piece Full Bore Ball Valve (Economic)
Body Construction,2-Piece Bolted/Threaded Body (Split Body)
Bore Design,Full Bore (Unrestricted Flow)
Pressure Rating,PN 63 (1000 PSI / 6.3 MPa)
Material Grade,ASTM A351-CF8M (316 Stainless Steel)
End Connections,"Female to Female (F/F) BSPP, BSPT, or NPT"
Size Range,1/4" to 4" (DN8 - DN100)
Seat Material,PTFE (Teflon) or RPTFE
Stem Design,Blow-out Proof Stem
Temperature Range,−20∘C to +150∘C
Handle Style,Heavy Duty Lever with Plastic Sleeve
Locking Device,Standard (Lockable in Open or Closed position)
Testing Standard,API 598 / EN 12266-1
