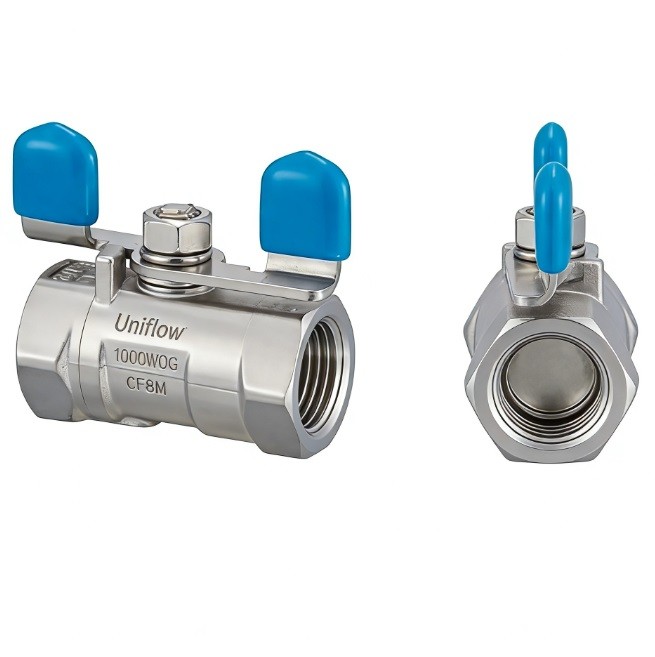

1-Piece Reduced Bore Ball Valves with Butterfly Handles are compact, space-saving valves designed for tight piping layouts. The "Butterfly" (or T-handle) allows for easy 90° operation in confined areas where a long lever would be obstructed. The 1-piece monoblock 316 Stainless Steel body eliminates joint leak paths and supports pressures up to PN 63 (1000 PSI). While the reduced bore slightly restricts flow, it ensures a lightweight, economical, and durable solution for gas and liquid isolation.
Technical Attributes: 1-Piece Ball Valve with Butterfly Handle
Body Construction,1-Piece Investment Cast (Monoblock)
Bore Design,Reduced Bore (Standard Port)
Handle Type,Butterfly / T-Handle / Wing Handle
Pressure Rating,PN 63 (1000 PSI / 6.3 MPa)
Material Grade,AISI 316 (CF8M) Stainless Steel
End Connections,Threaded (F/F) NPT or BSP
Size Range,1/4" to 1" (DN8 - DN25)
Seat Material,PTFE (Pure Teflon)
Stem Design,Blow-out Proof Stem
Temperature Range,−20∘C to +120∘C
Handle Material,Stainless Steel or Painted Aluminum
Locking Mechanism,Generally Non-Locking (due to compact size)
