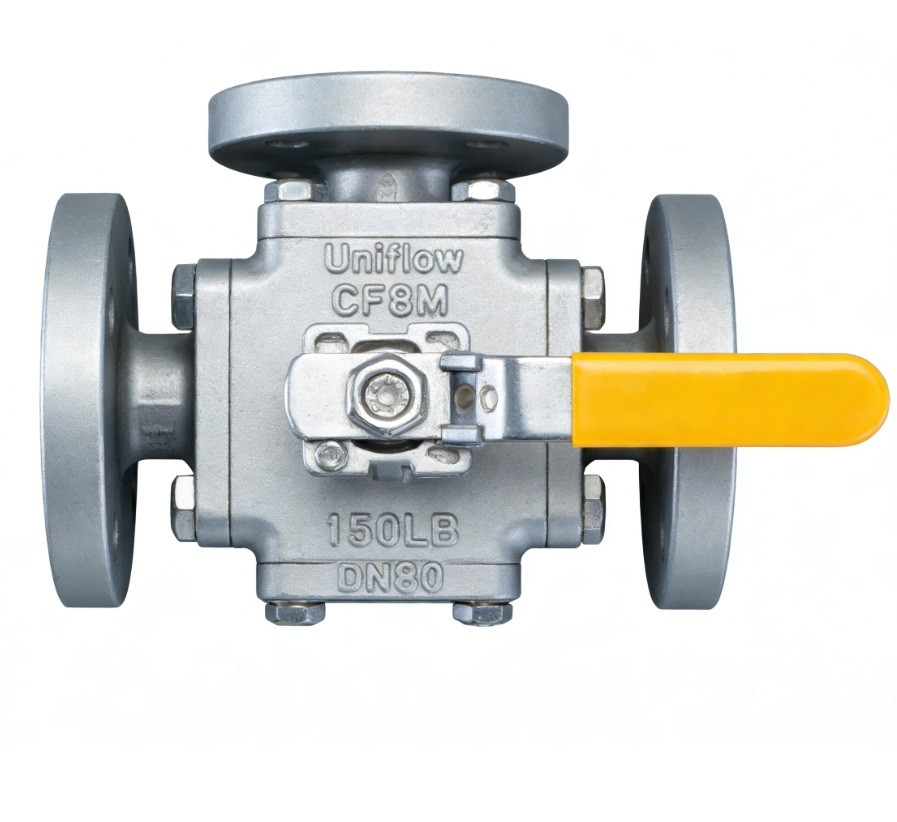

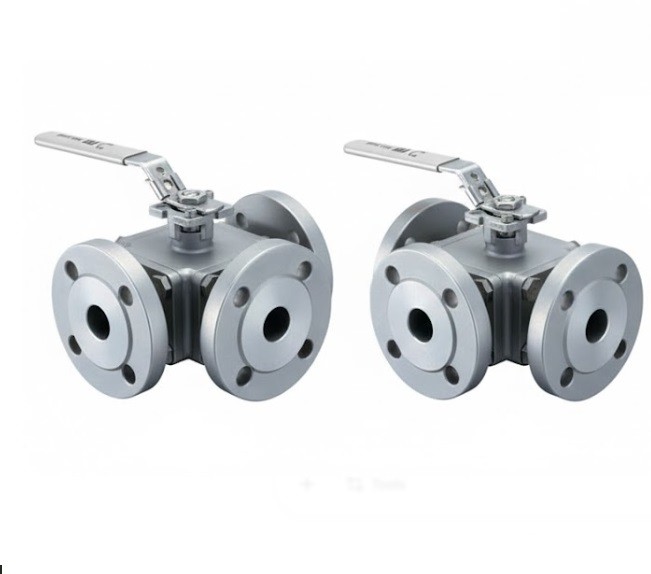

The 150LBS 3-Way Flanged Ball Valve is a versatile flow-control solution used to divert or mix media. Available in L-port (diverting) or T-port (mixing) configurations, it replaces multiple two-way valves and fittings. The integrated ISO 5211 direct mounting pad allows for the easy installation of pneumatic or electric actuators without brackets or couplings, resulting in a more compact, reliable, and cost-effective automated assembly.
Technical Attribute Table: 150LBS 3-Way Ball Valve
1,Design Standard,ASME B16.34 / API 608
2,Pressure Class,ASME Class 150 (150LBS)
3,Body Material,ASTM A351 CF8 / CF8M / CF3M
4,Ball Material,Stainless Steel (SS304 / SS316)
5,Port Configuration,L-Port or T-Port
6,Mounting Pad,ISO 5211 (Direct Mount)
7,Nominal Size,1/2" to 12"
8,Face-to-Face,Manufacturer Standard / ASME B16.10
9,Flange Connection,ASME B16.5 RF (Raised Face)
10,Seat Material,PTFE / RPTFE / PEEK
11,Bore Type,Full Bore (Standard)
12,Stem Design,Blow-out Proof Stem
13,Anti-Static,Integrated Internal Grounding
14,Seat Number,4-Seat Design (Ensures balance/stability)
15,Temperature Range,−29℃ to +180℃ (Soft Seat)
16,Operation,Handlever / Gearbox / Actuator
17,Shell Test Pressure,3.1 MPa (approx. 450 psi)
18,Seat Test Pressure,2.2 MPa (approx. 320 psi)
19,Tightness Class,EN 12266-1 Rate A / API 598
20,Surface Finish,Pickled/Passivated or Shot Blasted
