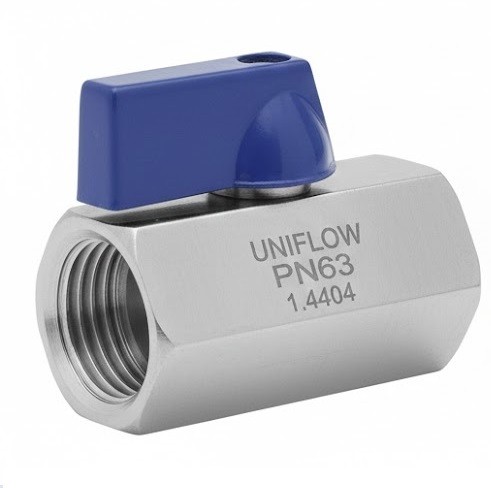

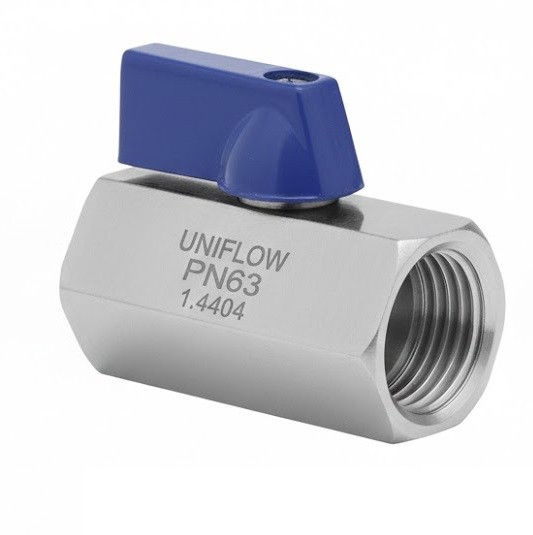

1-Piece Reduced Bore Mini-Ball Valves (F/F PN 63) are ultra-compact shut-off valves designed for space-constrained gas and liquid lines. The "1-Piece" body is cast from a single block of 316 Stainless Steel, providing maximum leak resistance and structural integrity. With a PN 63 (1000 PSI) rating, they handle high pressures despite their small size. The "Reduced Bore" and female-to-female (F/F) threads make them ideal for instrumentation, drains, and sampling.
Technical Attributes: 1-Piece Reduced Bore Mini-Ball Valve (F/F)
Body Type,1-Piece Investment Cast (Monoblock)
Bore Design,Reduced Bore (Standard Port)
Pressure Rating,PN 63 (1000 PSI / 6.3 MPa)
Material Grade,ASTM A351-CF8M (316 Stainless Steel)
End Connections,"Female to Female (F/F) BSPP, BSPT, or NPT"
Size Range,1/8" to 1" (Typical)
Seat Material,PTFE / RPTFE (Reinforced Teflon)
Stem Design,Blow-out Proof Stem
Temperature Range,−20∘C to +150∘C (Subject to pressure)
Handle Type,"Small Lever or Butterfly ""Wing"" Handle"
Testing Standard,API 598 / EN 12266-1
Media Compatibility,"Water, Oil, Gas (WOG) and Chemical Corrosives"
