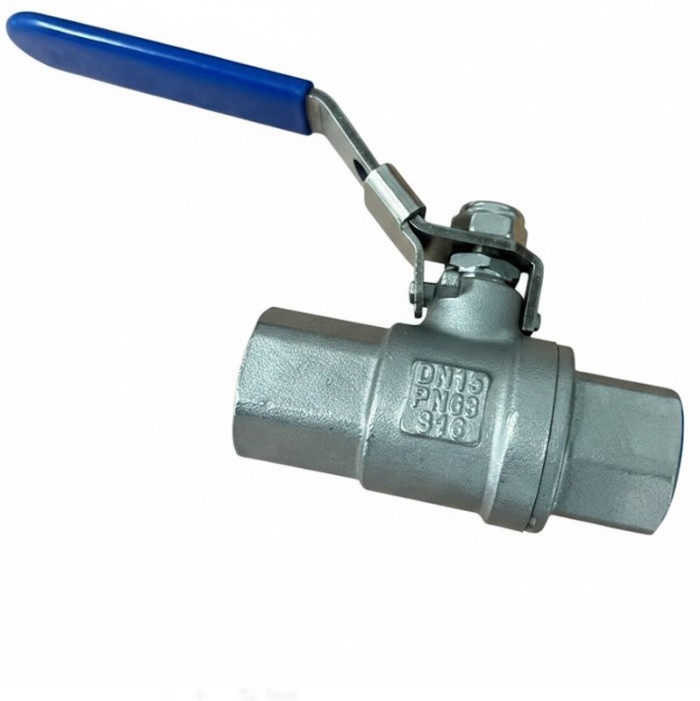

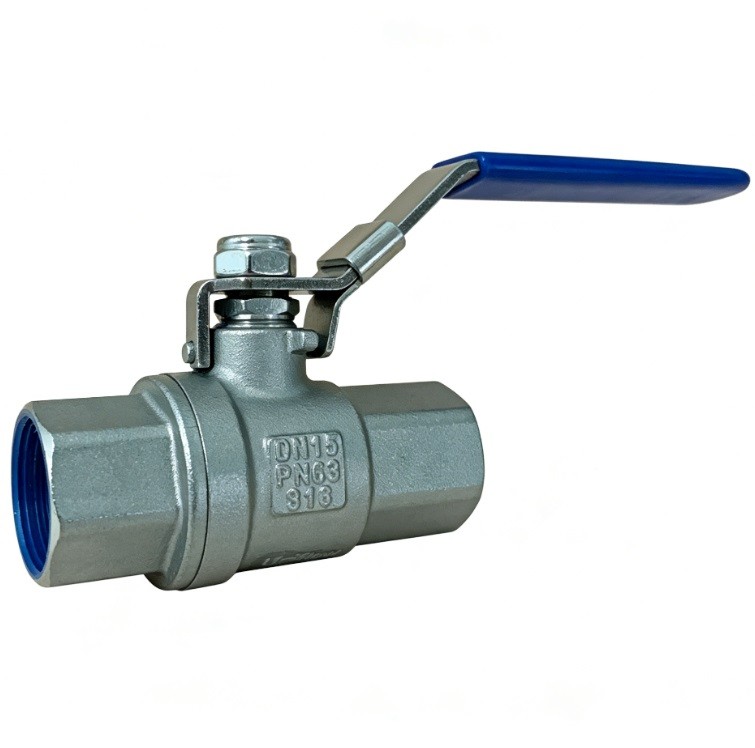

The DIN3202 M3 is a high-performance, 2-piece ball valve featuring a screwed-end design for secure piping connections. Built to rigorous German engineering standards, the "M3" designation specifies a precise face-to-face length, ensuring compatibility in standardized industrial systems.
Technical Attributes: DIN3202 M3 2-PC Screwed End Ball Valve
Design Standard,DIN 3202-M3 / EN 12516-1
Construction,2-Piece Bolted Body (Split Body)
Material,Stainless Steel (1.4408 / CF8M) or Carbon Steel (WCB)
Bore Type,Full Bore (Unrestricted Flow)
End Connections,"Threaded (BSPP, BSPT, or NPT)"
Pressure Rating,PN63 (1000 PSI) standard
Temperature Range,−20∘C to +180∘C (Dependent on seat material)
Seat Material,Reinforced PTFE (RPTFE) or TFM1600
Stem Design,Blow-out Proof Stem with Anti-Static Device
Face-to-Face Dim.,According to DIN 3202-M3
Operation,Lockable Lever Handle (Manual) or ISO 5211 Pad
Testing Standard,EN 12266-1 / API 598
