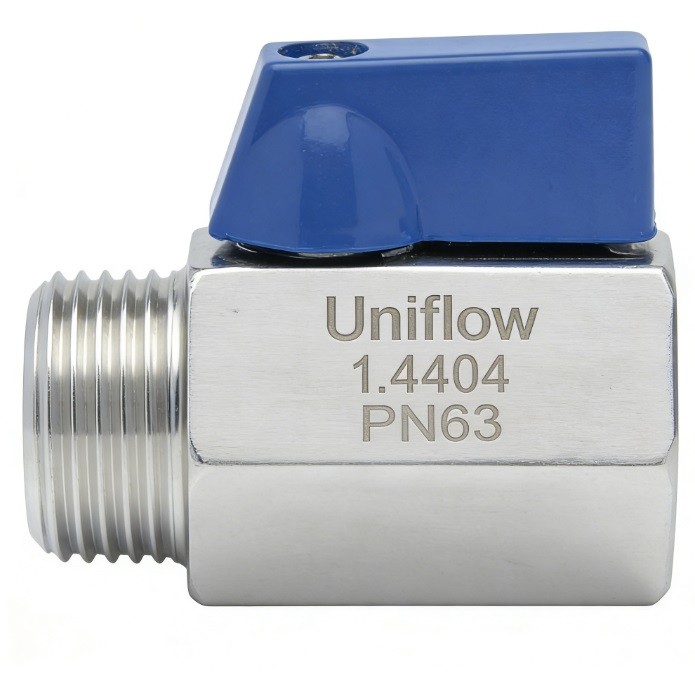

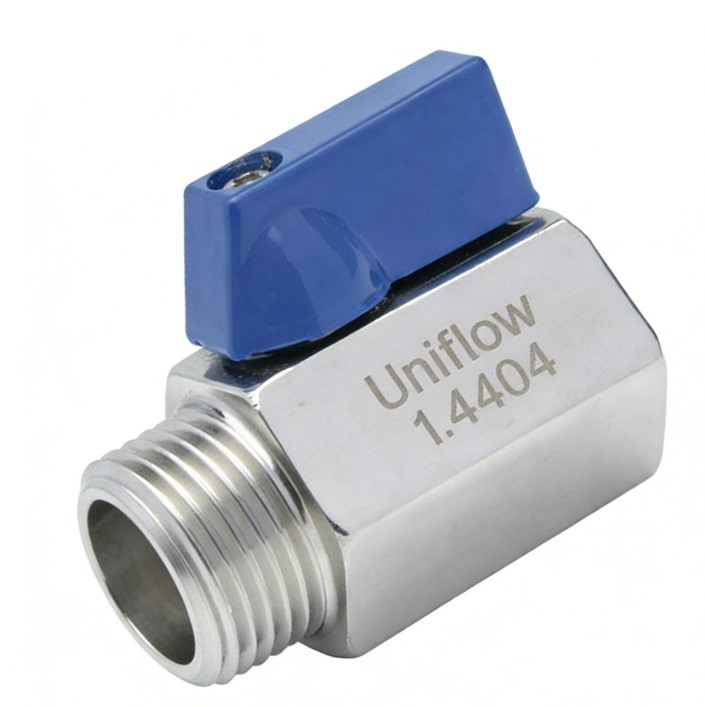

1-Piece Reduced Bore Mini-Ball Valves (F/M PN 63) feature a space-saving "Male-to-Female" threaded design, allowing direct connection to manifolds or tanks without extra nipples. The 316 Stainless Steel monoblock body ensures maximum leak protection and high-pressure durability up to PN 63 (1000 PSI). Its reduced bore design is optimized for precision flow control in instrumentation, air lines, and drainage, offering a robust, compact solution for demanding industrial environments.
Technical Attributes: 1-Piece Reduced Bore Mini-Ball Valve (F/M)
Body Construction,1-Piece Investment Cast (Monoblock)
Bore Design,Reduced Bore (Standard Port)
Thread Configuration,Female to Male (F/M)
Pressure Rating,PN 63 (1000 PSI / 6.3 MPa)
Material Grade,ASTM A351-CF8M (316 Stainless Steel)
Size Range,1/8" to 1" (Compact Series)
Seat Material,PTFE or RPTFE (Reinforced Teflon)
Stem Type,Blow-out Proof Internal Entry
Temperature Range,−20∘C to +150∘C
Handle Style,Lever or Butterfly (Plastic or SS)
Testing Standard,API 598 / EN 12266-1
Common Applications,"Instrumentation, Sampling, Gauge Isolation"
