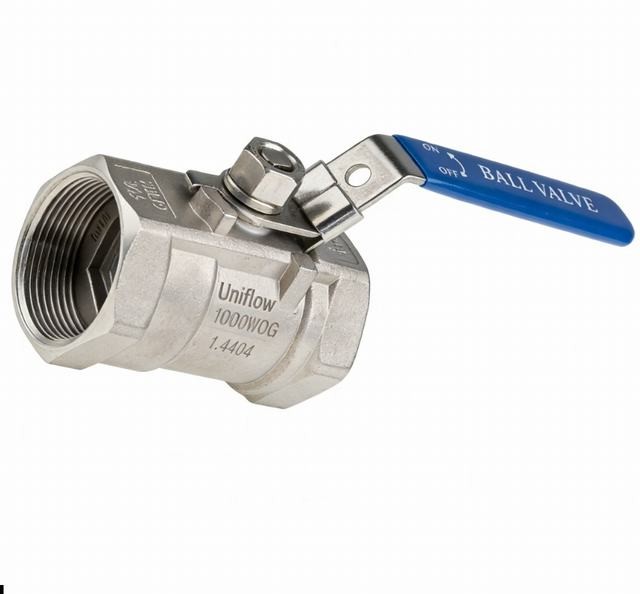

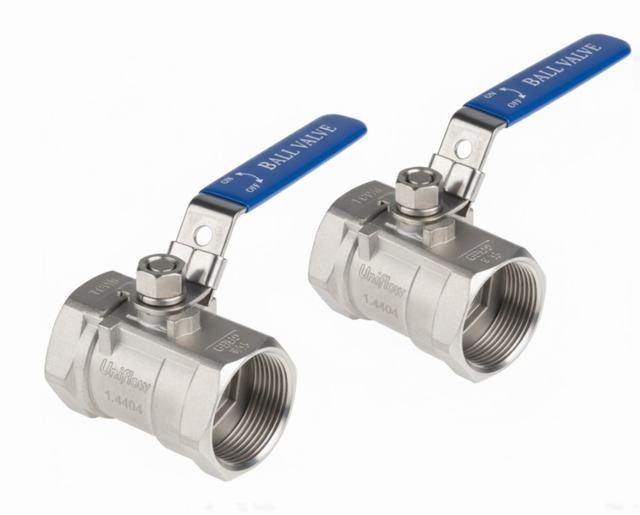

1-Piece Reduced Bore Economic Ball Valves are cost-effective, high-reliability shut-off valves designed for general-purpose industrial applications. The "Economic" designation refers to their efficient monoblock design, which uses less material while maintaining a PN 63 (1000 PSI) rating. The reduced bore limits flow slightly but ensures a compact, leak-proof body with no middle seams. Made from 316 Stainless Steel, they are ideal for WOG (Water, Oil, Gas) services where space and budget are key.
Technical Attributes: 1-Piece Reduced Bore Economic Ball Valve
Body Construction,1-Piece Investment Cast (Economic Monoblock)
Bore Design,Reduced Bore (Standard Port)
Pressure Rating,PN 63 (1000 PSI / 6.3 MPa)
Material Grade,ASTM A351-CF8M (316) or CF8 (304) Stainless
End Connections,"Threaded (Female to Female) NPT, BSPP, or BSPT"
Size Range,"1/4"" to 2"" (DN8 - DN50)"
Seat Material,Pure PTFE (Teflon)
Stem Design,Internal Entry / Blow-out Proof
Temperature Range,−20∘C to +120∘C (Standard Duty)
Handle Style,Heavy Duty Lever with Locking Device
Testing Standard,API 598 (Shell and Seat)
Media Type,"Water, Oil, Gas (WOG) and mildly corrosive fluids"
