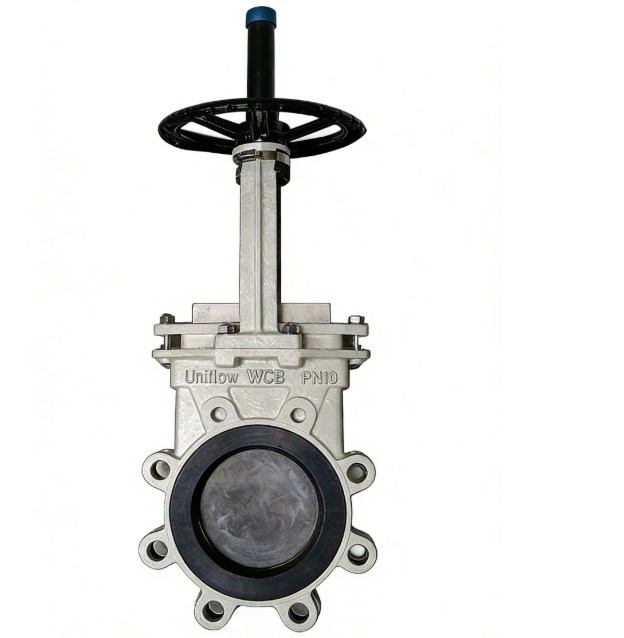

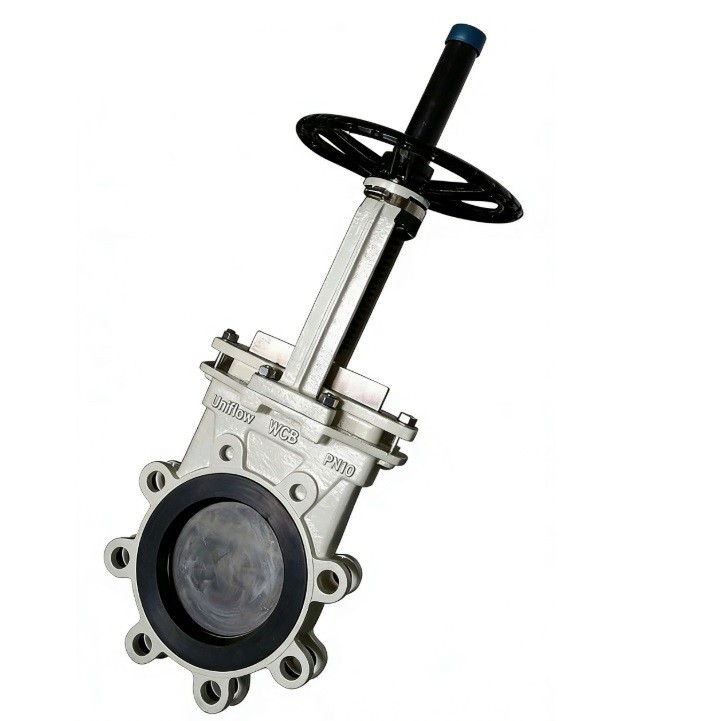

The Wafer Type Rubber Sleeve Knife Gate Valve is a specialized slurry valve designed for the most abrasive applications. It features a unique dual-sleeve design where two heavy-duty rubber sleeves press against each other to form a bubble-tight seal. When the gate opens, the sleeves expand to create a 100% full-bore flow path, isolating the metal body from the abrasive media. It is the industry standard for mining tailings, coal washing, and mineral processing where extreme wear resistance is required
Technical Attributes: Wafer Rubber Sleeve Knife Gate Valve
Body Material,Ductile Iron GGG50 / Cast Steel WCB / CF8
Sleeve Material,Natural Rubber / EPDM / Neoprene / Viton
Sleeve Design,Dual Heavy-Duty Replaceable Sleeves
Gate Material,AISI 304 / 316 / 2205 Duplex Stainless
Pressure Rating,PN10 / PN16 / Class 150
Size Range,DN50 - DN600 (2" to 24")
Bore Design,100% Full Bore / Unobstructed
Sealing Type,Bidirectional (Zero Leakage)
End Connection,Wafer (Fits between ASME/DIN Flanges)
Operation,Manual / Pneumatic / Electric / Hydraulic
Design Standard,Manufacturer Standard / MSS SP-81
Face-to-Face,MSS SP-81 / Wide Pattern (to house sleeves)
Gate Edge,"Polished with Beveled ""Knife"" Edge"
Self-Cleaning,Purge/Flush Ports (Optional)
Temperature Range,−30℃ to +80℃ (Natural Rubber)
Testing Standard,API 598 / MSS SP-81
Coating,Fusion Bonded Epoxy (250+ Microns)
Maintenance,In-line Sleeve Replacement
