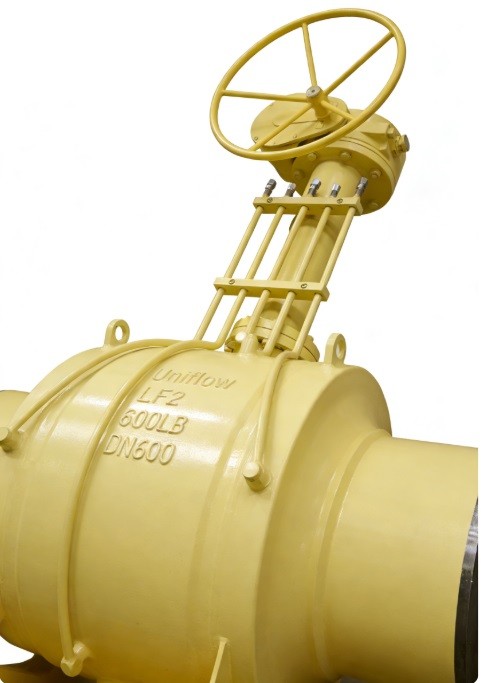

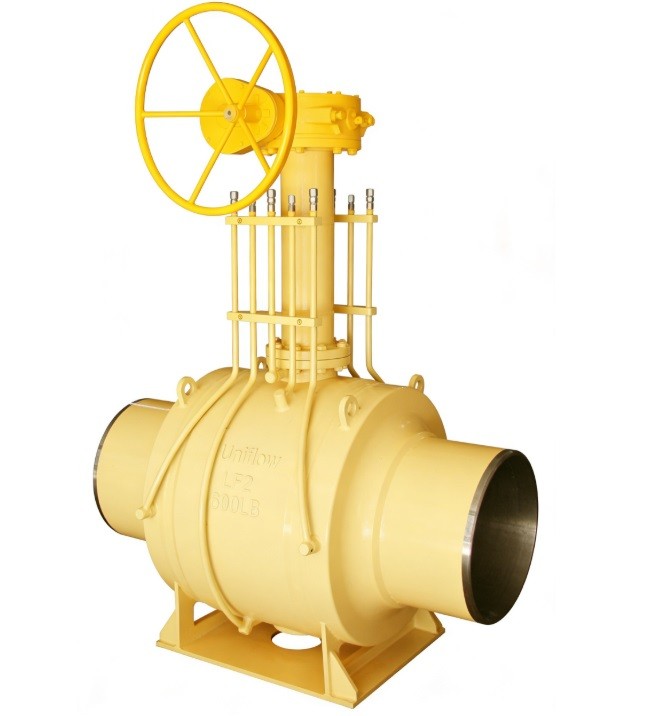

The Underground ASTM A105 Fully Welded Ball Valve (DN600 PN40) is a high-integrity isolation valve specifically engineered for buried service in gas or oil networks. The fully welded forged body eliminates external leak paths, while the PN40 rating supports high-pressure transmission. It features a trunnion-mounted ball for low torque and is typically equipped with a stem extension and specialized anti-corrosive coating to allow for reliable surface operation from a buried position.
Technical Attribute Table: DN600 PN40 Fully Welded Ball Valve
1,Design Standard,API 6D / ISO 14313
2,Body Construction,Fully Welded (Forged Steel)
3,Body Material,ASTM A105 (Carbon Steel)
4,Nominal Diameter,DN600 (24 Inch)
5,Pressure Rating,PN40 (4.0 MPa / 40 Bar)
6,Ball Type,Trunnion Mounted (Fixed Ball)
7,Bore Type,Full Bore (Pigging Capable)
8,Seat Type,Spring-Loaded / Self-Relieving
9,Sealing Feature,Double Block and Bleed (DBB)
10,End Connection,Butt-Weld (BW) / Flanged
11,Stem Design,Blow-out Proof / Anti-Static
12,Stem Extension,Required for Underground Burial
13,Secondary Seal,Emergency Sealant Injection Ports
14,Fire Safe Design,API 607 / API 6FA Certified
15,Operation,Gearbox with Extended Stem / Actuator
16,External Coating,Fusion Bonded Epoxy (FBE) or Bitumen
17,Shell Test Pressure,6.0 MPa (60 Bar)
18,Seat Test Pressure,4.4 MPa (44 Bar)
19,Tightness Class,EN 12266-1 Rate A / API 598
20,Service Life,Designed for 30+ Years (Buried)
