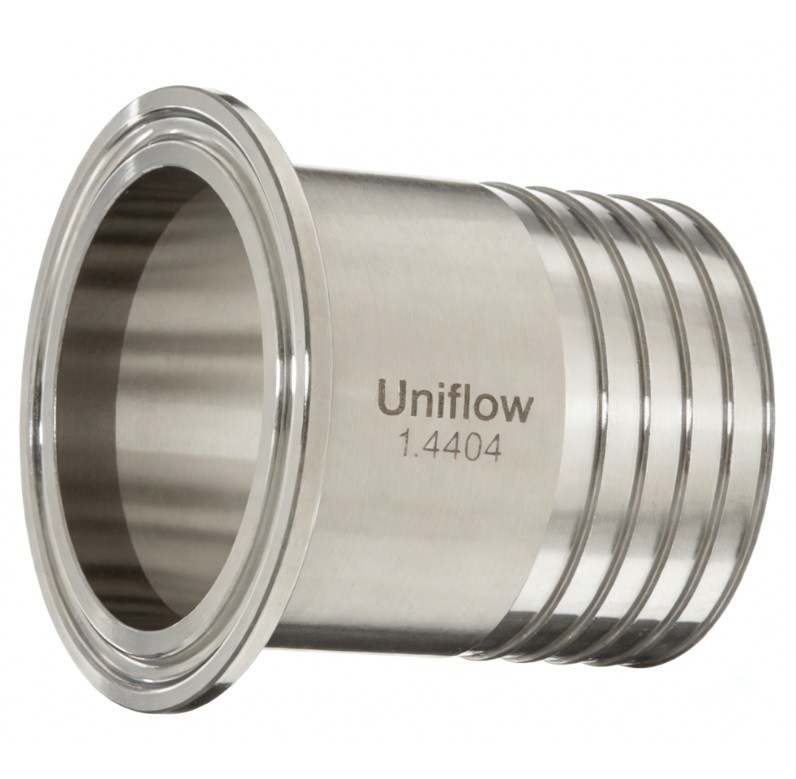

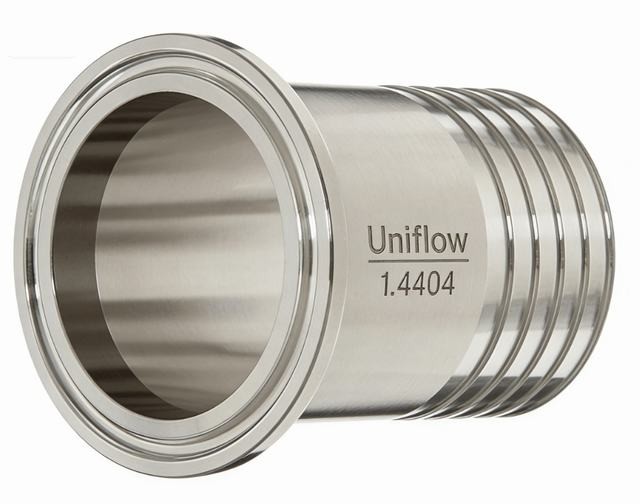

Tri-Clamp Hose Adapters are essential bridge components in hygienic piping, used to transition between rigid process lines and flexible tubing. Featuring a standard ferrule on one end and a multi-tiered hose barb on the other, they ensure a secure, leak-proof grip when secured with a heavy-duty clamp. Typically forged from 316L Stainless Steel, they support CIP/SIP protocols. They are indispensable for mobile pump skids, tank filling, and load-out stations in food and pharma.
Technical Attributes: Tri-Clamp Hose Adapters
Attribute,Specification / Value
Connection Type A,Sanitary Tri-Clamp (Ferrule)
Connection Type B,Multi-step or Tapered Hose Barb
Material Grades,"316L Stainless Steel (Standard), 304L (Optional)"
Size Range,1/2" to 4" (Matching both TC and Hose ID)
Surface Finish (Internal),Ra<0.51μm (20 μin) – Mirror/High Polish
Surface Finish (External),Polished or Bright Annealed
Barb Design,"Smooth-tapered or ""Beaded"" for maximum grip"
Pressure Rating,Up to 150 PSI (Limited by hose/clamp strength)
Standard Compliance,"3-A Sanitary, ASME BPE, FDA CFR 21.177"
Compatibility,"Silicone, PVC, EPDM, and Reinforced Braided Hoses"
Sterilization,"Autoclave, CIP (Clean-in-Place), and SIP compatible"
Installation,Requires Worm Gear or Bolt Clamps for hose side
