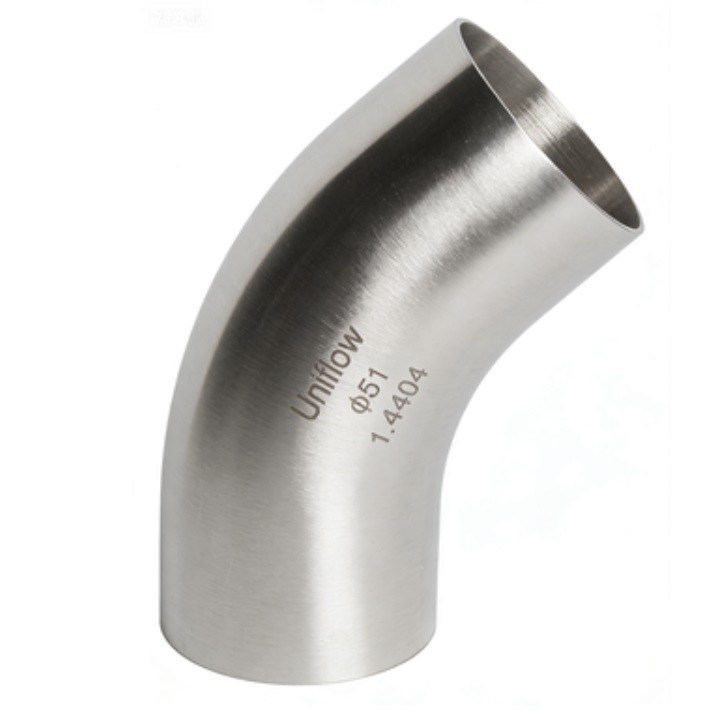

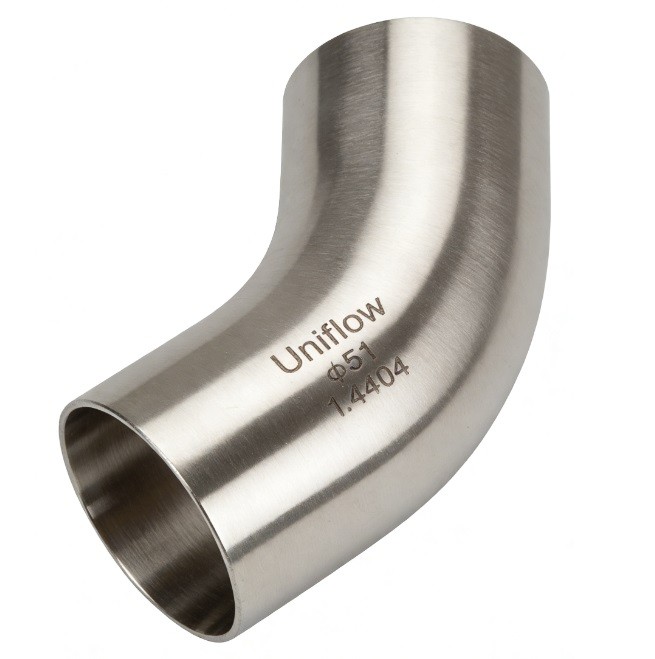

Hygienic Plain End 45° Long Radius Elbow
A 45° long radius (LR) plain end elbow** provides a gentle directional change in sanitary systems. With a centerline radius of the diameter, it minimizes pressure drop and turbulence compared to short-radius bends.
Design: Extended tangents support easy **orbital welding**.
Hygiene: Polished internal bore (Ra < 0.8μm) eliminates bacteria traps.
Usage: Ideal for viscous products or high-velocity CIP lines.
Technical Attributes: Hygienic 45° LR Elbow
Angle of Bend,45 Degrees
Bend Radius,Long Radius (1.5× Nominal Diameter)
End Configuration,Square-cut Plain Ends (Tangents included for welding)
Material Types,"ASTM A270 TP316L (Low Carbon), TP304"
Available Sizes,"0.5"" to 6.0"" (OD Tube)"
Internal Finish,Ra≤20μin (0.5μm) – High Purity Grade
External Finish,Ra≤32μin (0.8μm) – Polished or Brushed
Wall Thickness,Standard 0.065" (1.65mm) for 1"-3" sizes
Tolerance Standards,ASME BPE (Table DT-4.1.1) / ASTM A269
Heat Treatment,Solution Annealed for corrosion resistance
Testing,100% Boroscope inspected; PMI (Positive Material ID) tested
Marking,"Heat Number, Size, Material Grade, and Surface Finish"
