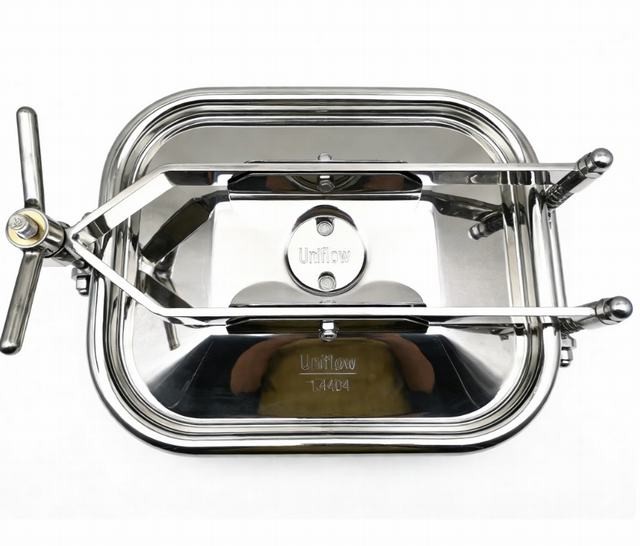

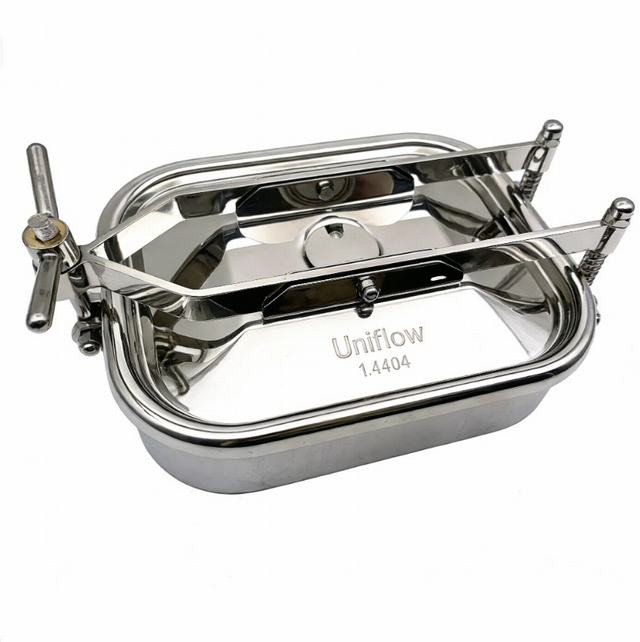

Hygienic Rectangular Tank Manhole Covers are specialized access ports commonly installed on the side-walls of large storage vats and mash tuns. Their wide, horizontal profile allows for easy removal of solid residues, such as spent grain or fruit pulp. Designed for outward-opening, they feature a smooth, radius-corner frame to prevent bacterial buildup. Made from 316L Stainless Steel, they provide a robust, leak-proof seal for non-pressurized or low-pressure vessels.
Technical Attributes: Hygienic Rectangular Manhole Cover
Component Name,Rectangular Outward-Opening Manway
Common Dimensions,435×335 mm or 535×435 mm (Standard)
Material Grade,AISI 316L or 304 Stainless Steel
Opening Direction,Outward-Opening (Side-swing or Top-hinged)
Pressure Rating,Low Pressure / Static Head (typically ≤1.0 Bar)
Gasket Material,"Food-grade EPDM, Silicone, or NBR"
Frame Style,Radius-corner (prevents product entrapment)
Closure Style,Multi-handle Star-knobs or Stainless Steel Latches
Internal Surface Finish,Ra≤0.6μm (25μin) – Sanitary Ground
External Surface Finish,Mirror Polish or Brushed / Satin Finish
Mounting Position,Side-wall (Flush with tank bottom)
Standard Compliance,"FDA (Gaskets), 3-A, CE"
