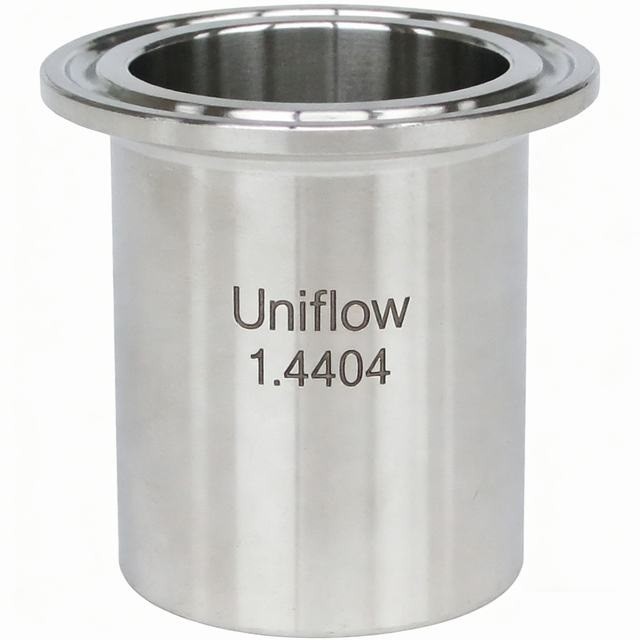

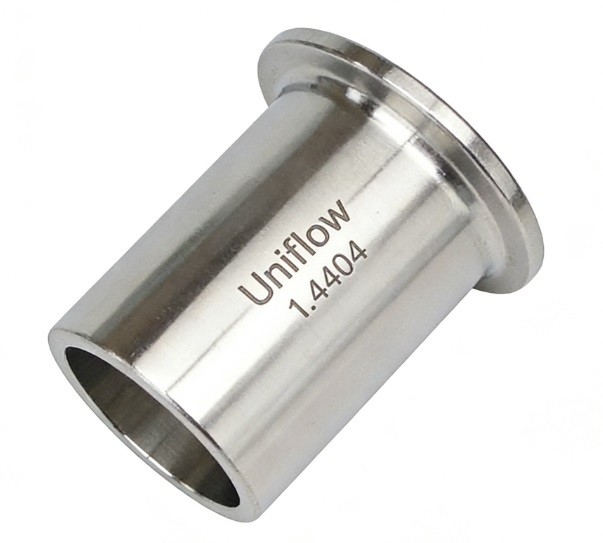

Tri-Clamp Long-Weld Ferrules are sanitary fittings designed to provide a secure, flanged connection point on stainless steel tubing. The "Long" version features an extended neck (tangent), providing ample clearance for orbital welding heads to maneuver without hitting the flange. Manufactured from 316L or 304L stainless steel, they ensure a smooth, crevice-free internal transition. They are the industry standard for creating permanent, hygienic ports in food, dairy, and biotech systems.
Technical Attributes: Tri-Clamp Long-Weld Ferrule
Component Name,Long-Weld Ferrule (14WMP Style)
Connection A,Tri-Clamp / Sanitary Flange Face
Connection B,Buttweld / Plain End (for Orbital Welding)
Standard Length,1.125" to 1.75" (Size dependent)"
Material Grades,"316L Stainless Steel (Low Carbon), 304L"
Size Availability,0.5" through 12" (1.0" - 4.0" are most common)
Internal Finish (Ra),≤0.51μm (20μin) - SF1 Standard
External Finish (Ra),≤0.8μm (32μin) - Bright or Satin
Wall Thickness,"Standard 0.065"" (1.65mm) for 1""-3"" sizes"
Standard Compliance,"ASME BPE, 3-A Sanitary, DIN 32676"
Welding Suitability,Controlled sulfur content (0.005%−0.017%) for weld repeatability
Traceability,Heat Number & Material Grade laser-etched
