Stainless steel instrumentation condensate pots 6000 psi

Detailed Product Introduction

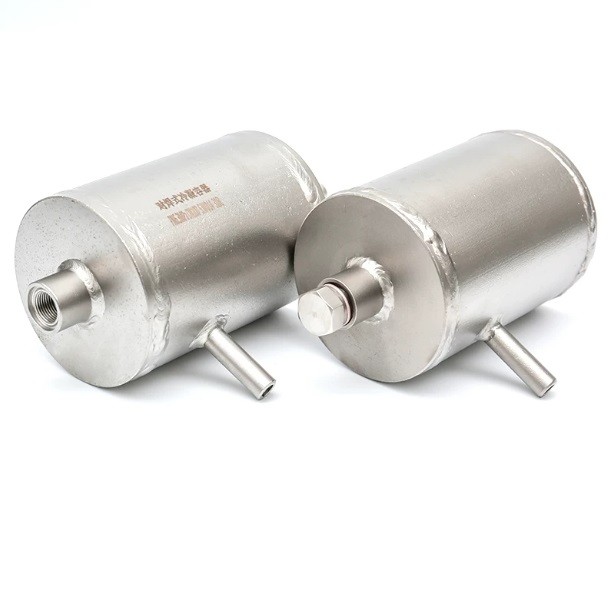

The series instrumentation-grade stainless steel condensate and seal pot is a high-integrity chamber designed to trap condensate, cool superheated steam, and isolate volatile or corrosive process fluids before they reach sensitive measuring instruments. CNC-fabricated from premium heavy-wall seamless stainless steel piping and welded with rugged reinforced end caps, this structural vessel safely sustains massive line pressure surges up to 6000 PSI (414 Bar). It features versatile, multi-directional high-precision NPT threaded ports to accommodate inlet process lines, instrument connections, vent valves, and drain plugs. Rated for temperature exposures scaling from cryogenic limits up to 850°F (454°C), it serves as a critical buffer, preventing liquid level fluctuations, minimizing acoustic pulsation, and safeguarding differential pressure transmitters, pressure gauges, and sensing elements in thermal power boilers, petrochemical refineries, and gas processing plants.

Technical Specifications

• Vessel Classification: Instrumentation Condensate Pot / Seal Pot / Fluid Chamber

• Structural Blueprint: Heavy-wall seamless pipe body welded with high-tensile domed end caps

• Primary Body Metallurgy: Premium Stainless Steel 316L (SS316L) / SS316 / Heavy-duty SS304

• Welding Specification: Full-penetration automated TIG weld joints meeting rigorous code radiography standards

• Multi-Port Layout: Available in 2-port, 3-port, 4-port, or customized multi-directional terminal setups

• Connection Standards: High-precision Female NPT or BSPT threaded ports according to ASME B1.20.1

• Standard Port Dimension: 1/2" NPT Female interface (Alternative 1/4" or 3/4" sizes scalable)

• Maximum Mechanical Pressure: 6000 PSI (414 Bar / 41.4 MPa) robust hydrostatic instrumentation tier

• Maximum Thermal Rating: Certified for reliable service up to 850°F (454°C) under rated pressure loads

• Cryogenic Temperature Threshold: Rated resilient down to extreme ambient exposures of -65°F (-54°C)

• Wall Thickness Rating: Schedule 80, Schedule 160, or XXS heavy wall thickness configurations

• Volume Capacity Profile: Standard 0.5 Liter, 1.0 Liter, or 2.0 Liter volumetric containment sizes

• Main Safety Applications: Steam condensation, chemical media isolation, liquid level leveling, and sediment trapping

• Sealing Integrity Standard: 100% helium mass spectrometer leak-tested to ensure zero environmental emissions

• Vent & Drain Capability: Top port for gas purging and bottom port for easy residue or slurry drainage

• Corrosion Performance: Highly resistant to sulfide stress cracking, pitting, and dynamic thermal oxidation

• Shell Hydrostatic Validation: Verified through mandatory pressure bench validation at 1.5 times the nominal rating

• Exterior Surface Aesthetics: Fine satin sandblasted finish with deep, permanent laser-etched operational metrics

• Design Standards Compliance: Fabricated and qualified in compliance with ASME B31.1 (Power Piping) and ASME B31.3

• Cleanliness Engineering: Completely degreased, moisture evacuated, capped with vinyl protectors, and individually packed
