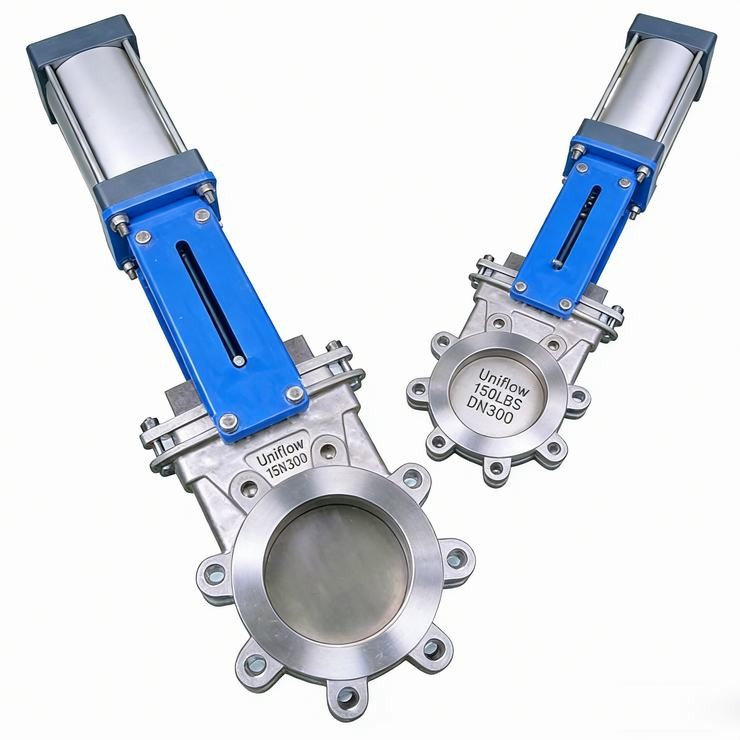

The Stainless Steel 150LBS Pneumatic Lug Knife Gate Valve is a high-performance automated valve designed for corrosive and abrasive slurries. Its CF8 (SS304) or CF8M (SS316) body ensures superior chemical resistance, while the Lug-style design allows for secure installation and dead-end service. Driven by a powerful pneumatic cylinder, it provides rapid, remote isolation. The sharp, beveled gate slices through solids, making it ideal for paper pulp, chemical processing, and wastewater treatment.
Technical Attributes: 150LBS SS Pneumatic Lug Knife Gate Valve
Body Material,ASTM A351 CF8 (SS304) / CF8M (SS316)
Pressure Class,ASME Class 150 (150LBS)
Actuator Type,Pneumatic Cylinder (Double Acting/Spring Return)
End Connection,Lug Type (Threaded Bolt Holes)
Gate Material,SS304 / SS316 / SS316L (Precision Polished)
Seat Material,EPDM / NBR / PTFE / Metal-to-Metal
Size Range,2" to 24" (DN50 - DN600)
Air Supply,4.0 - 8.0 bar (60−115 PSI)
Design Standard,MSS SP-81 / ASME B16.34
Face-to-Face,MSS SP-81 (Short Pattern)
Flange Drilling,ASME B16.5 Class 150
Sealing Type,Unidirectional (Standard) / Bidirectional
Packing Material,PTFE / Braided Graphite / Aramid Fiber
Solenoid Valve,24VDC / 110VAC / 220VAC (Optional)
Position Feedback,Limit Switches / Proximity Sensors
Temperature Range,−29℃ to +150℃ (Resilient) / +425℃ (Metal)
Working Media,"Corrosive Slurries, Pulp, Syrup, Pellets"
Testing Standard,API 598 / MSS SP-81
Manual Override,Emergency Handwheel (Optional)
