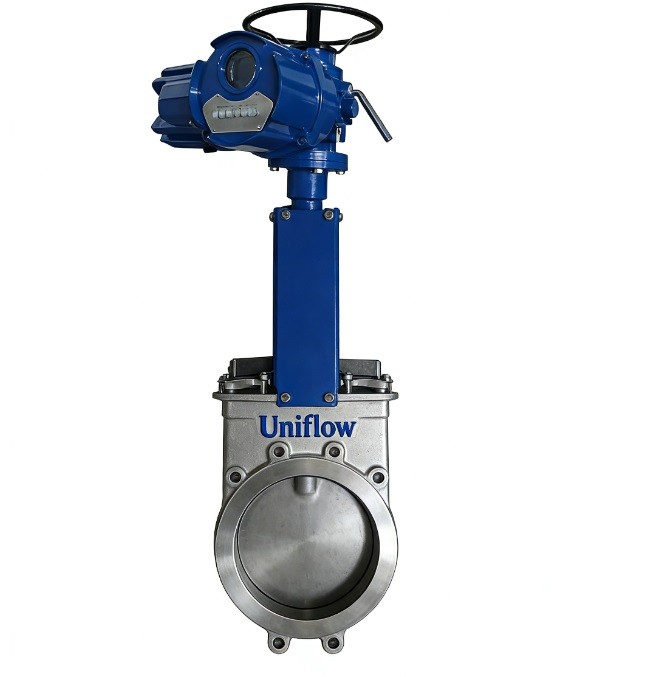

The Electric Actuated Knife Gate Valve is a precision-automated solution for controlling the flow of heavy slurries, pulp, and wastewater. Equipped with a multi-turn electric actuator, it provides high-torque performance for remote operation in large-scale piping systems. The beveled gate effectively "slices" through thick media, while the electronic controls allow for precise positioning, limit sensing, and integration into SCADA or PLC networks for smart industrial management.
Technical Attributes: Electric Actuated Knife Gate Valve
Actuator Type,Multi-turn Electric Actuator (On/Off or Modulating)
Body Material,Ductile Iron GGG50 / WCB / SS304 / SS316
Gate Material,AISI 304 / 316 / 316L (Polished Finish)
Seat Material,EPDM / NBR / PTFE / Metal-to-Metal
Power Supply,220V / 380V / 440V AC; 24V DC
Size Range,"DN50 - DN1200 (2"" to 48"")"
Pressure Rating,PN6 / PN10 / PN16 / Class 150
Connection Type,Wafer / Lug / Flanged
Control Signal,Passive Contact / 4-20mA / Modbus / Profibus
Protection Class,IP67 (Standard) / IP68 / Explosion-proof
Manual Override,Declutchable Handwheel for Emergency Use
Design Standard,MSS SP-81 / ASME B16.34
Face-to-Face,MSS SP-81 / Manufacturer Standard
Travel Limit,Built-in Adjustable Limit Switches
Torque Protection,Internal Over-torque Sensors
Packing Material,PTFE / Braided Graphite / Aramid Fiber
Working Temp,−20℃ to +120℃ (Soft) / +425℃ (Metal)
Testing Standard,API 598 / MSS SP-81
