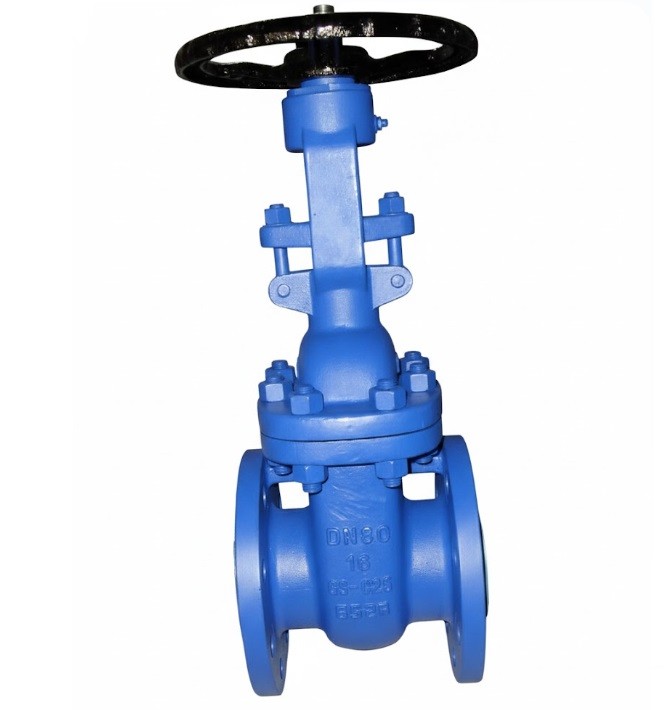

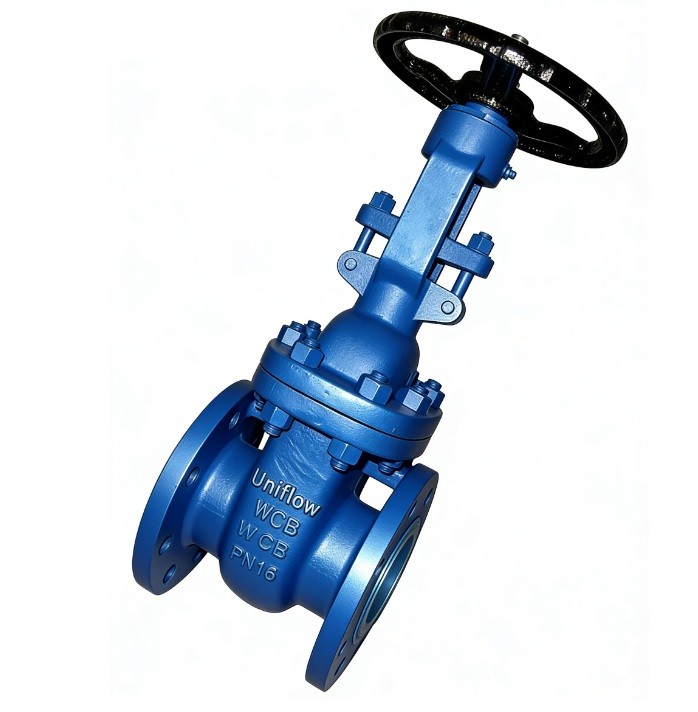

The DIN3202 F4 NRS Cast Steel Gate Valve is a robust industrial valve designed for reliable flow control. It adheres to the DIN3202 F4 standard, specifying a "short" face-to-face length for compact installation.
Key Features
NRS (Non-Rising Stem): The stem threads remain inside the valve, making it ideal for tight spaces where vertical clearance is limited.
Material: Built from cast steel, providing high tensile strength and durability for high-pressure or high-temperature applications.
Design: Features a wedge gate mechanism for a tight seal and minimal pressure drop.
It is commonly used in water treatment, oil, and gas industries where space-saving and structural integrity are priorities.
Technical Attribute Table
1,Design Standard,DIN 3352 / EN 1984
2,Face-to-Face,DIN 3202 F4 / EN 558 Series 14 (Short Pattern)
3,Flange Dimensions,DIN EN 1092-1 / DIN 2501
4,Pressure Rating,"PN10, PN16, PN25, PN40"
5,Nominal Diameter,DN40 to DN600 (Standard Range)
6,Body Material,"Cast Steel (e.g., GP240GH / 1.0619 / ASTM A216 WCB)"
7,Bonnet Material,Cast Steel (Same as Body)
8,Wedge Type,Flexible or Solid Wedge (Metal Seated)
9,Stem Type,NRS (Non-Rising Stem / Inside Screw)
10,Stem Material,Stainless Steel (X20Cr13 / SS304 / SS316)
11,Seat Ring Material,Stainless Steel (13Cr) or Bronze
12,Wedge Trim,Stainless Steel or Hardened Facings (Stellite)
13,Packing Material,Flexible Graphite / PTFE
14,Gasket Type,Corrugated Stainless Steel + Graphite
15,Operation,"Handwheel, Gearbox, or Electric Actuator"
16,Temperature Range,−29∘C to +425∘C (Varies by material)
17,Shell Test Pressure,"1.5× PN (e.g., 24 bar for PN16)"
18,Seal Test Pressure,"1.1× PN (e.g., 17.6 bar for PN16)"
19,Coating,Black Primer or Fusion Bonded Epoxy (FBE)
20,Suitable Media,"Water, Oil, Steam, Gas, and Non-Corrosive Fluids"
