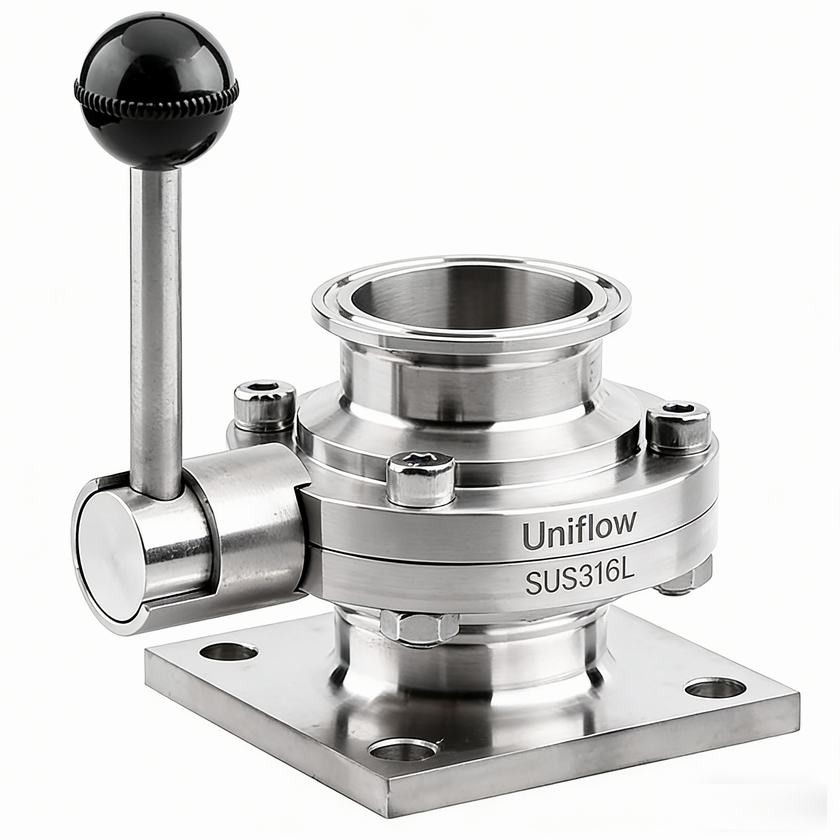

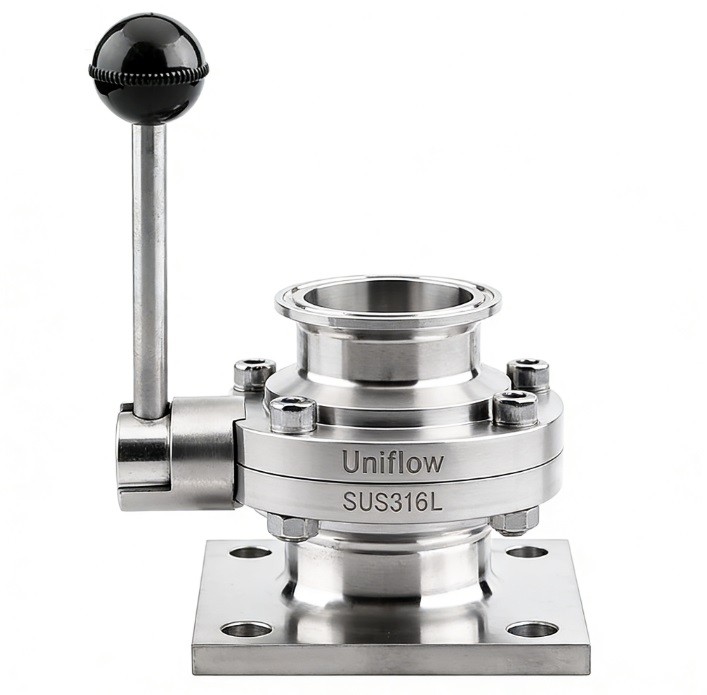

Sanitary Flanged and Tri-Clamp Butterfly Valves are dual-connection components designed for versatile piping transitions. Featuring one flanged end (standard PN10/ANSI) and one Tri-Clamp end, they allow high-pressure, permanent flanged equipment to interface with quick-release sanitary lines. Made from polished SS316L, they feature FDA-approved seats and a Ra < 0.4um finish. They are perfect for tank outlets or pump connections requiring both robust mounting and easy cleaning.
Technical Attributes: Flanged x Tri-Clamp Butterfly Valve
1,Size Range,1" to 10" (DN25 – DN250)
2,Material Grade,Stainless Steel 316L (standard) or 304
3,Flange Standard,"ANSI B16.5 (Class 150), DIN (PN10/16), or JIS"
4,Clamp Standard,"ASME BPE, ISO 2852, or DIN 32676"
5,Internal Surface,Polished Ra≤0.4μm (Mirror) or 0.8μm
6,Seat Material,"FDA-Grade EPDM (Standard), Silicone, or PTFE"
7,Operating Press.,Up to 10 bar (145 psi) — limited by clamp side
8,Design Standard,3-A Sanitary / EHEDG / ASME BPE
9,Operation,"Manual (Trigger/Pull), Pneumatic, or Electric"
10,Disk Type,"Precision-machined spherical ""low-torque"" disk"
11,Compliance,FDA 21CFR177.2600 & USP Class VI
12,Seal Geometry,Full-encapsulation (Prevents media-to-stem contact)
13,Bolt Hole Config,"4, 8, or 12 holes depending on Flange size/spec"
14,Cleaning Compatibility,CIP (Clean-in-Place) & SIP (Steam-in-Place)
15,Structure,Split-body design for quick internal maintenance
