Hygienic SMS Unions

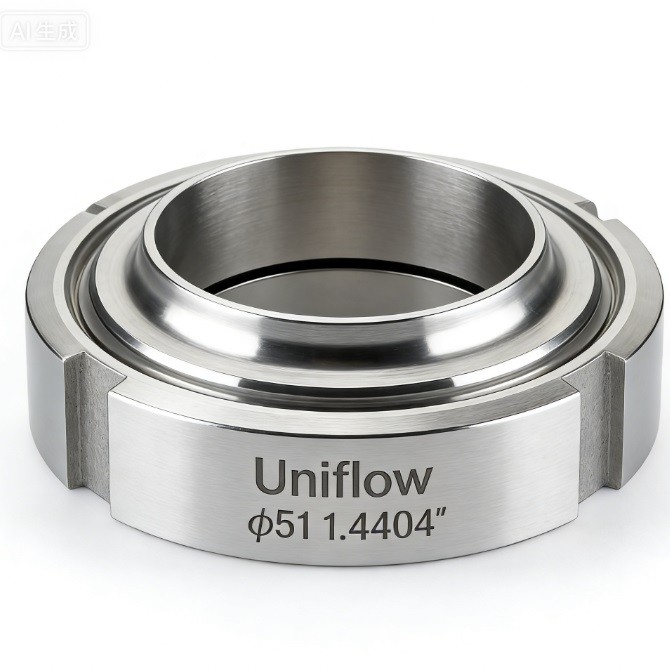

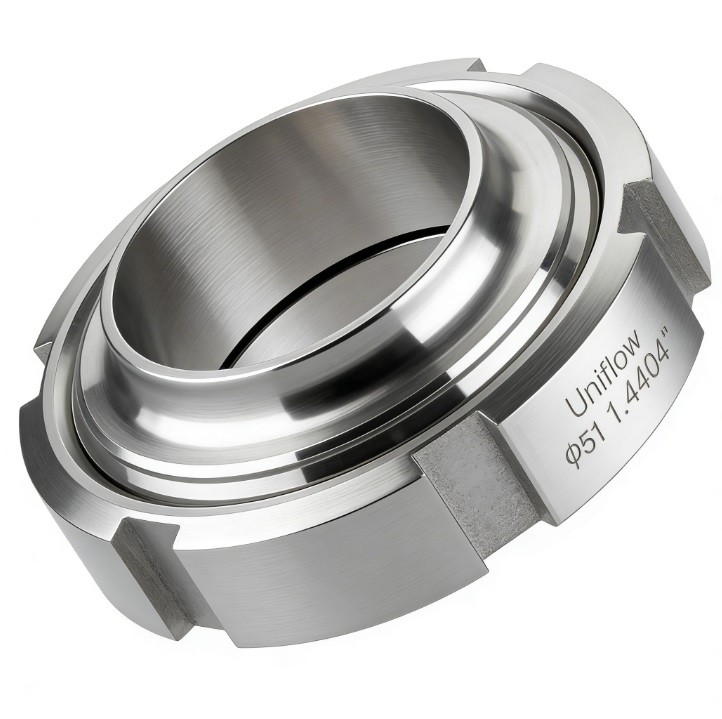

The SMS (Swedish Milk Standard) union is one of the most popular hygienic fittings globally due to its compact, low-profile design. It features a round slotted nut and a flat L-style gasket, creating a smooth internal bore suitable for CIP (Clean-in-Place).

Because it requires very little space to engage the threads, it is ideal for tight manifold configurations. While common in Europe, it uses its own metric-based sizing, making it incompatible with RJT or IDF parts.

Download

The SMS (Swedish Milk Standard) 1145 is arguably the most widely used hygienic fitting globally. It is favored for its "short" design, which allows for compact pipework configurations. Unlike the heavy Acme or Whitworth threads of British standards, the SMS union uses a fine-pitch thread and a distinctive round nut.

Technical Attributes: SMS 1145 Unions

Standard,SMS 1145 (Swedish Milk Standard)

Nut Style,Round Slotted Nut (Requires a C-Spanner)

Internal Bore,"Smooth, flush finish (No crevices)"

Primary Material,"316L Stainless Steel (Wetted), 304 (Nuts)"

Size Range,25mm to 104mm (Metric-based OD)

Seal Type,L-Section (Lip) Gasket

Seal Materials,"EPDM (Standard), Nitrile, Viton, or PTFE"

Max Pressure,Approx. 10 Bar (145 psi)

Thread Type,Fine Metric Thread (DIN 405 style)

Space Req.,Low (Compact design for tight manifolds)

Hygiene Level,High (Excellent for automated CIP)
