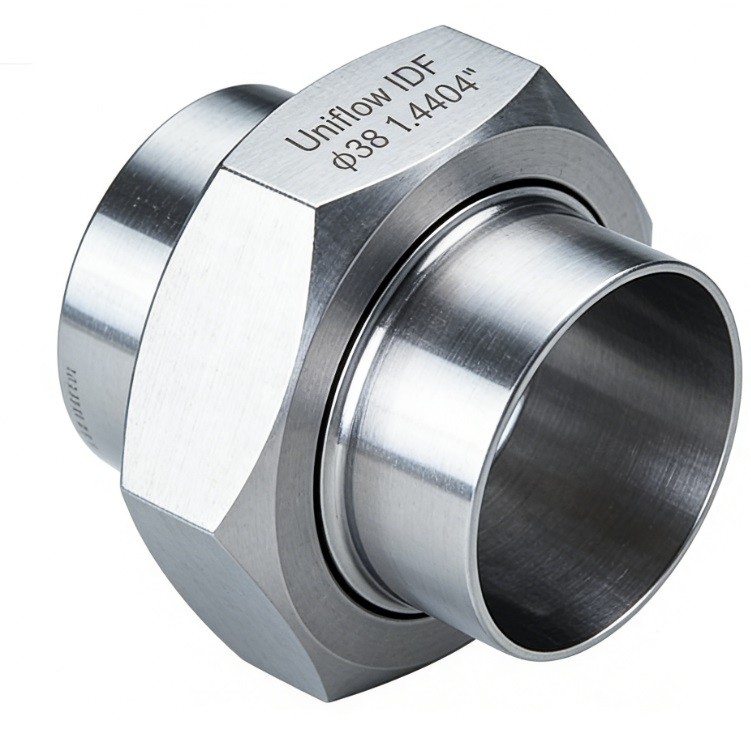

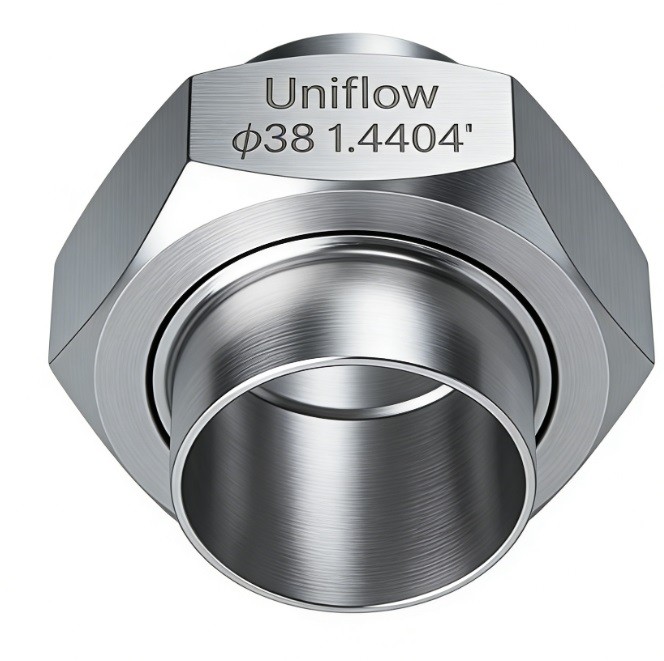

Hygienic IDF Unions BS 4825 Part 4

The IDF (International Dairy Federation) union, standardized under BS 4825 Part 4, is a heavy-duty hygienic fitting designed specifically for CIP (Clean-in-Place) systems.

Unlike RJT unions, the IDF features a flush internal bore that eliminates crevices, preventing bacterial growth. It uses a distinctive Acme thread and a T-shaped gasket. While highly reliable for permanent lines, its fine threads can be prone to galling if handled roughly during frequent manual teardowns.

Download

The IDF (International Dairy Federation) union, governed by BS 4825 Part 4, is the "heavy-duty" sibling to the RJT. It is specifically engineered for high-integrity Clean-In-Place (CIP) environments where a smooth, crevice-free internal flow is mandatory to prevent product entrapment.

Technical Attributes: IDF Unions

Standard,BS 4825 Part 4 (ISO 2853)

Thread Type,"Acme Thread (Flat-topped, high strength)"

Internal Profile,Flush-fit / Crevice-free (Ideal for CIP)

Primary Material,"316L Stainless Steel (Wetted), 304 (Nuts)"

Size Range,"1.0"" to 4.0"" (OD tube sizes)"

Seal Type,T-Section Gasket (Interlocking design)

Seal Materials,"Nitrile, EPDM, Viton, or PTFE"

Max Pressure,Up to 16 Bar (230 psi) - Size dependent

Temp Range,Up to 140°C (depending on seal material)

Joint Style,Hexagon Nut with Weld Liner/Male

Installation,Butt-Weld or Expanded (Rolled)
