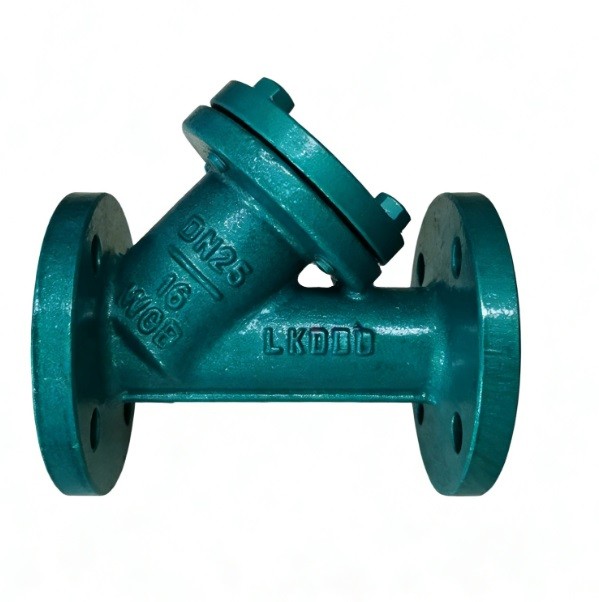

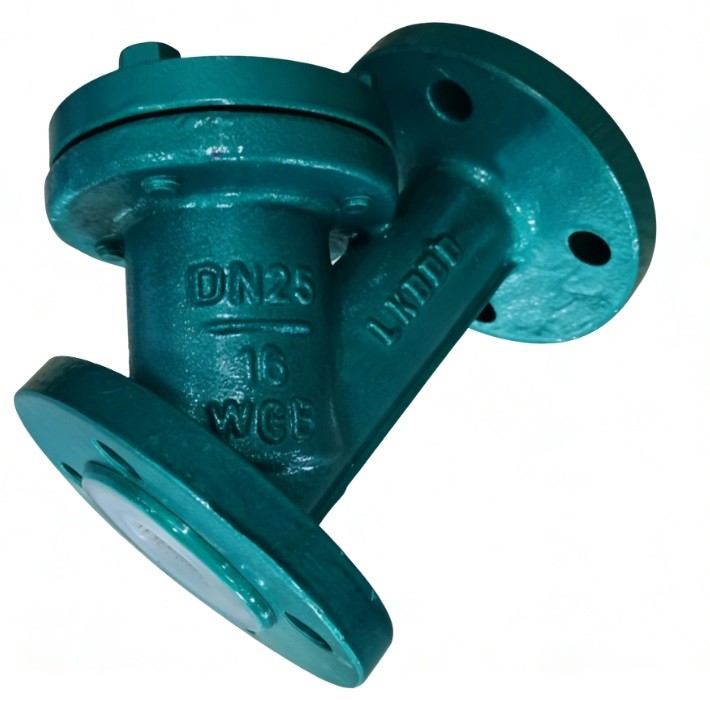

PN16 Cast steel PFA lined Y Strainer DIN3202 F1

Technical Attributes: PN16 Cast Steel PFA-lined Y-Strainer

1,Body Material,ASTM A216 WCB (Cast Steel)

2,Lining Material,PFA (Perfluoroalkoxy)

3,Pressure Rating,PN16 (1.6 MPa)

4,Lining Method,Melt-process injection/Transfer molding

5,Design Std,ASME B16.34 / HG/T 3704

6,Face-to-Face,DIN 3202-F1 / ASME B16.10

7,End Connection,Flanged (EN1092-1 / ANSI B16.5)

8,Filter Screen,PTFE / Hastelloy / PFA-coated SS

9,Temp. Range,-29℃ to +200℃

10,Spark Test,15kV – 25kV (Lining Integrity)

11,Lining Thick.,3mm to 5mm (Standard)

12,Fluid Media,"Strong Acids, Alkalis, Solvents"

13,Gasket,Not required (Integral lining face)

14,Bolting,ASTM A193 B7 / A194 2H

15,Visual Insp.,"Smooth, Pin-hole free surface"

16,Operation,Horizontal or Vertical installation

17,Drain Plug,Optional PFA-lined drain valve

18,Painting,Epoxy coating for external protection
