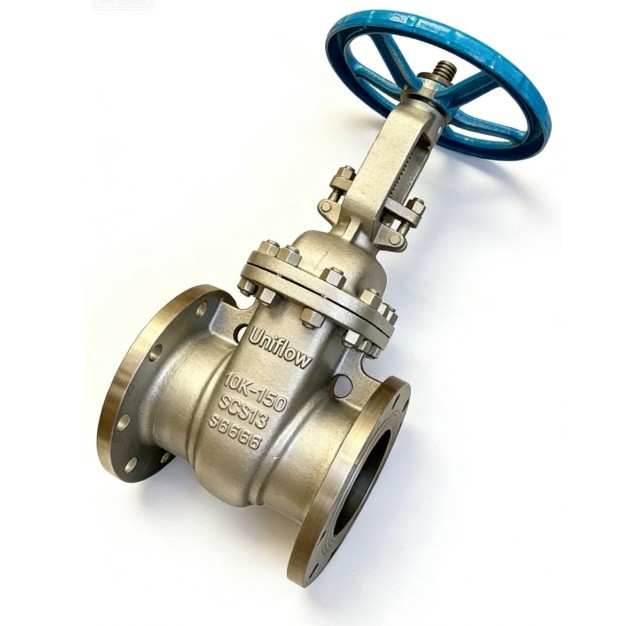

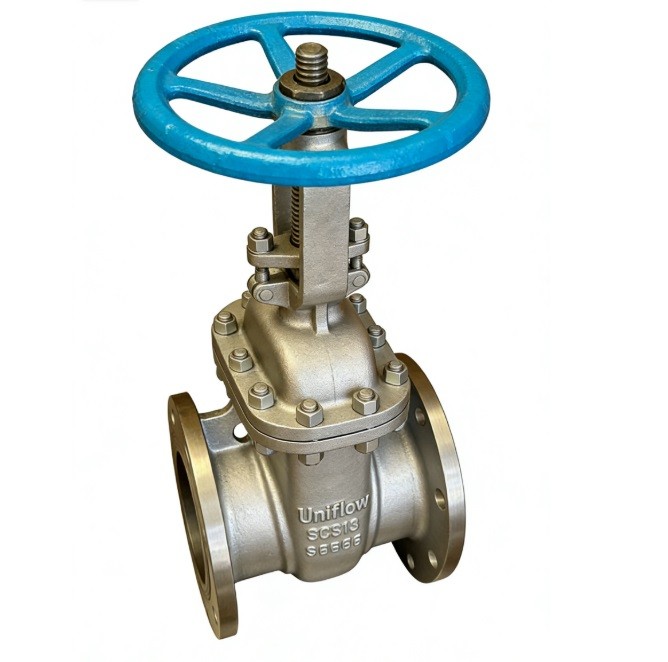

The JIS 10K Stainless Steel Gate Valve is a Japanese industrial standard isolation valve designed for medium-pressure corrosive services. Built from high-grade stainless steel (SCS13 or SCS14), it features a wedge-gate mechanism that provides a tight seal and minimal pressure drop when fully open. The 10K rating denotes its pressure class, making it a staple in East Asian maritime, chemical, and water treatment sectors where JIS standards are mandated.
Technical Attribute Table: JIS 10K Stainless Steel Gate Valve
1,Design Standard,JIS B2071 / B2081
2,Pressure Rating,10K (1.0 MPa / 10 Bar)
3,Body Material,Stainless Steel (SCS13 / SCS14 / SCS16)
4,Face-to-Face,JIS B2002
5,Flange Dimensions,JIS B2220
6,Nominal Diameter,15A to 600A (1/2" to 24")
7,Stem Type,Rising Stem (OS&Y) or Non-Rising Stem
8,Wedge Design,Flexible Wedge or Solid Wedge
9,Seat Material,Integral Stainless Steel (Hardfaced)
10,Bonnet Type,Bolted Bonnet
11,Stem Material,SUS304 / SUS316
12,Packing,PTFE / Flexible Graphite
13,Gasket,PTFE / Spiral Wound SS+Graphite
14,Operation,Handwheel / Gear / Actuator
15,Flow Direction,Bi-directional
16,Temperature Range,−20∘C to +200∘C (Standard)
17,Shell Test,2.1 MPa (Hydrostatic)
18,Seat Test,1.5 MPa (Hydrostatic) / 0.6 MPa (Air)
19,Leakage Class,JIS B2003 / API 598
20,Fasteners,Stainless Steel (SUS304)
