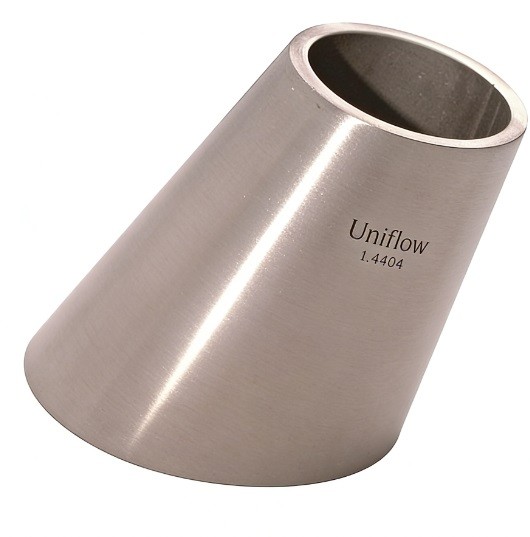

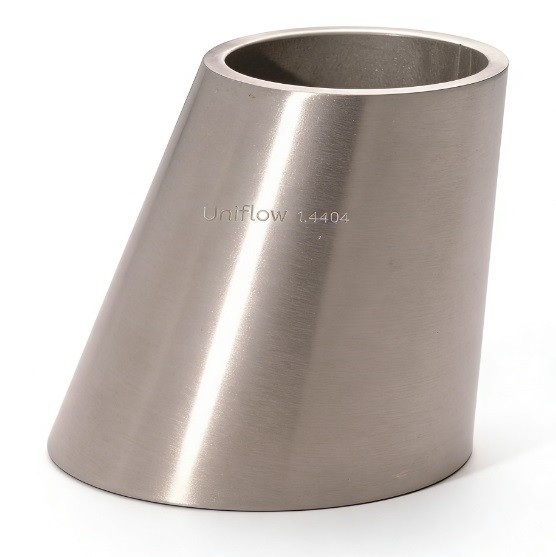

Hygienic Eccentric Reducer (Plain End)
An eccentric plain end reducer features one flat side, allowing for different pipe diameters to align along a single floor or ceiling line. This design is critical for horizontal installations to ensure full drainage and prevent liquid "puddling."
Function: Eliminates air pockets in suction lines and traps in discharge lines.
Connection: Butt-weld ends for permanent, high-purity orbital welding.
Finish: Ultra-smooth ID (Ra < 0.8μm) for strict sanitary compliance.
Attribute,Specification / Detail
Material Grades,Primarily AISI 316L (low carbon for welding) or 304
Geometry,Eccentric (Offset centerlines with one flat side)
End Connection,Plain End / Butt-weld (Suitable for orbital welding)
Standard Compliance,"ASME BPE, 3A, DIN 11865, SMS 3008, ISO 1127"
Internal Finish,Ra ≤ 0.5μm to 0.8μm (SF1 or SF4 per ASME BPE)
External Finish,Polished (Mirror or Satin) or Bright Annealed
Wall Thickness,"Matches pipe schedule (e.g., 1.2mm, 1.5mm, 1.65mm, 2.0mm)"
Size Range,"1/2"" x 1/4"" up to 12"" x 10"" (DN10 to DN300)"
Drainage Ability,Self-draining when installed with the flat side down
Pressure Rating,Rated to match the working pressure of the connected tubing
Cleaning Compatibility,Optimized for CIP (Clean-in-Place) and SIP (Steam-in-Place)
Traceability,Laser-etched heat numbers and material certifications
