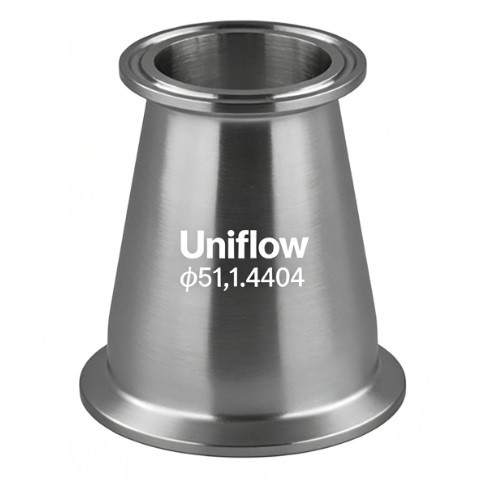

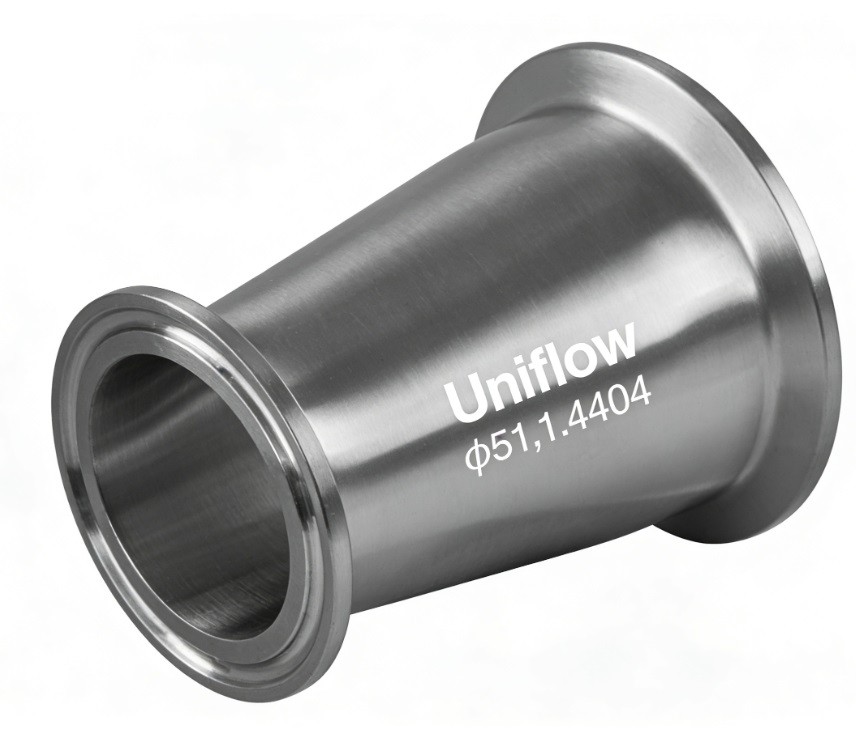

Hygienic Stainless Steel Reducer (Tri-Clamp End)
A Tri-Clamp (TC) reducer allows for quick-release, modular transitions between pipe sizes. They feature flanged ends secured by a clamp and gasket, making them ideal for systems requiring frequent disassembly for manual cleaning or inspection.
Versatility: Easy to install/remove without tools.
Sanitation: 3A certified with a crevice-free internal finish (Ra < 0.8μm).
Reliability: Provides a leak-proof seal under pressure and vibration.
Attribute,Specification / Detail
Material Grades,AISI 316L (High Corrosion Resistance) or AISI 304
End Connection,Tri-Clamp / Clover / Sanitary Flange (per ASME BPE/3A)
Internal Surface Finish,Ra ≤ 0.8μm (32μin) standard; Ra ≤ 0.4μm (15μin) optional
External Surface Finish,"Mirror Polish, Satin, or Brushed (Grit 180–400)"
Compliance Standards,"3A Sanitary Standards, ASME BPE, DIN 32676, ISO 2852"
Gasket Compatibility,"EPDM, Silicone, FKM (Viton), PTFE (Teflon), Buna-N"
Flange Diameters,"Range from 1/2"" (25.4mm) to 12"" (over 300mm)"
Pressure Rating,10 to 15 Bar (Highly dependent on clamp type and temperature)
Temperature Range,-10°C to +150°C (Limited by gasket material)
Geometries,Concentric (Standard) or Eccentric (For horizontal drainage)
Features,Easy disassembly for inspection; no specialized tools required
Traceability,Permanent heat number etching for MTR verification
