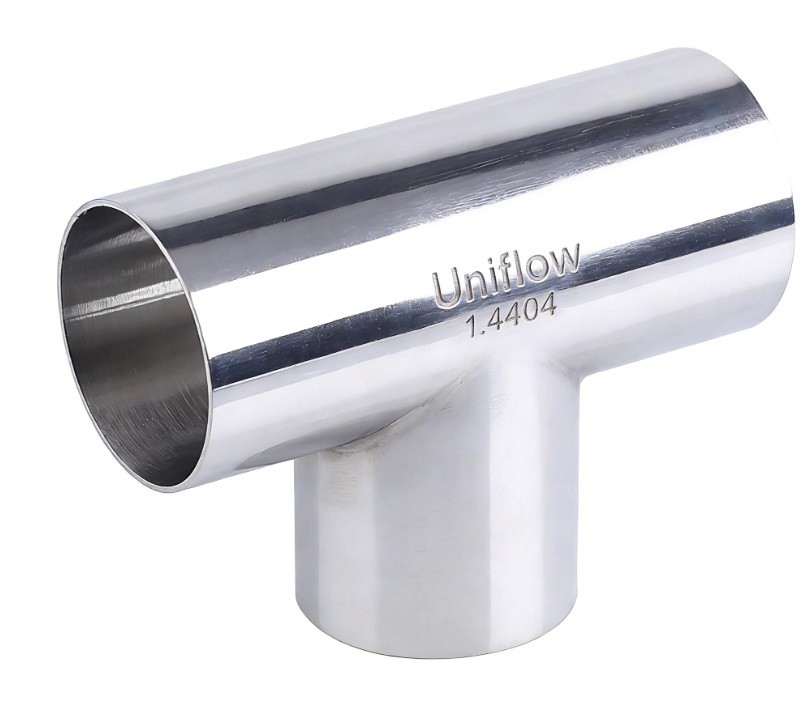

A plain end equal tee is a T-shaped fitting used to split or combine fluid flow in a sanitary piping system. "Equal" means all three openings have the same diameter. Designed for permanent butt-weld installation, it provides a seamless, crevice-free connection that prevents bacterial buildup.
Construction: Usually 316L or 304 stainless steel.
Finish: Smooth internal bore (Ra < 0.8μm) for CIP efficiency.
Usage: Essential for distribution loops in pharma and food plants.
Attribute,Specification / Detail
Material Grades,AISI 316L (standard for pharma/biotech) or AISI 304
Connection Type,Plain End / Butt-weld (Extended tangents for orbital welding)
Geometry,Equal Tee (Branch diameter matches the main run diameter)
Surface Finish (ID),Ra ≤ 0.51μm (20μin) or Ra ≤ 0.8μm (32μin)
Surface Finish (OD),"Machined, Satin, or Mirror Polish"
Standard Compliance,"ASME BPE, 3A, DIN 11865, SMS 3008, ISO 2037"
Wall Thickness,"Usually 1.2mm, 1.5mm, 1.65mm, or 2.0mm"
Nominal Sizes,1/2" to 6" (DN10 to DN150) standard; larger up to 12"
Pressure Rating,Maximum pressure determined by tube wall thickness
Manufacturing,Hydroformed or Pulled-tee construction (seamless)
Sanitation,Optimized for CIP (Clean-in-Place) and SIP (Steam-in-Place)
Traceability,Material Test Reports (MTR) and Heat Numbers etched
