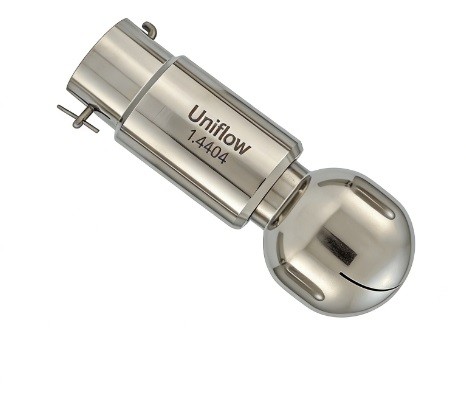

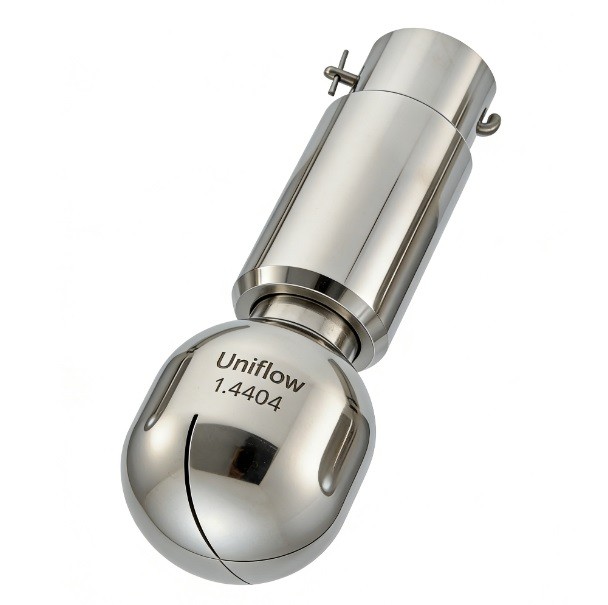

Hygienic Clip-on Rotary Spray Balls are dynamic cleaning devices used for high-efficiency Tank Cleaning (CIP). Unlike threaded versions, these feature a slip-fit collar that slides over a plain-end pipe and secures with a locking pin (R-clip). This "tool-less" design allows for rapid removal during inspections. Driven by cleaning fluid, the head rotates to provide 360° mechanical scrubbing. Made from 316L Stainless Steel, they are ideal for pharmaceutical and food tanks where easy teardown is required.
Technical Attributes: Hygienic Clip-on Rotary Spray Ball
Connection Style,Slip-fit / Clip-on (Over Tube OD)
Locking Mechanism,Stainless Steel Safety R-Clip / Cotter Pin
Drive Method,Media-driven (Cleaning fluid provides torque)
Material Construction,AISI 316L Stainless Steel
Available Tube Sizes,0.5", 1.0", 1.5", and 2.0" OD Tube fits
Rotation Coverage,360° Sphere (180° Top/Bottom patterns available)
Operating Pressure,1.5–3.5 Bar (22–50 PSI)
Washing Radius,0.5m–2.5m (Effective mechanical scrub)
Lubrication,Self-lubricating (using the cleaning media)
Surface Finish,Ra≤0.5μm (20μin) Internal / Mirror External
Max Temperature,140∘C (284∘F) – SIP Compatible
Bearing Type,PEEK or Stainless Steel Ball Bearing race
