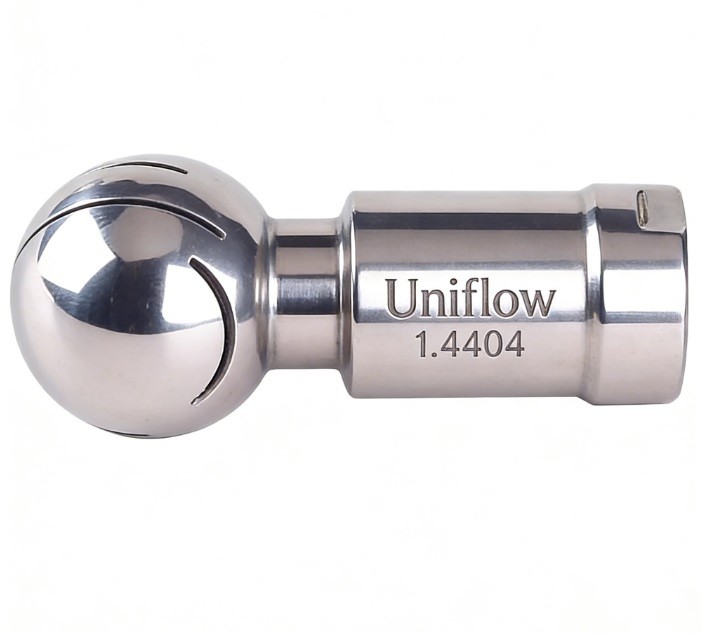

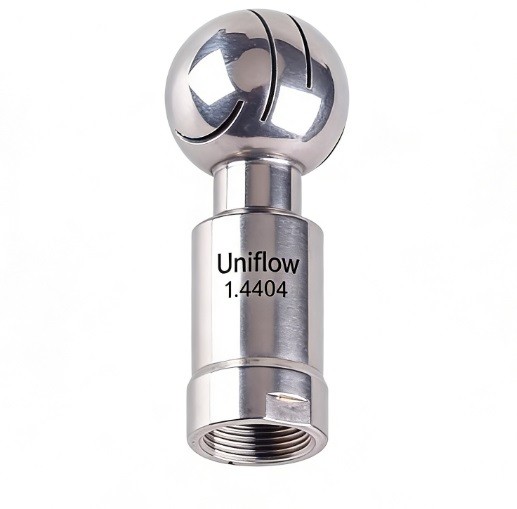

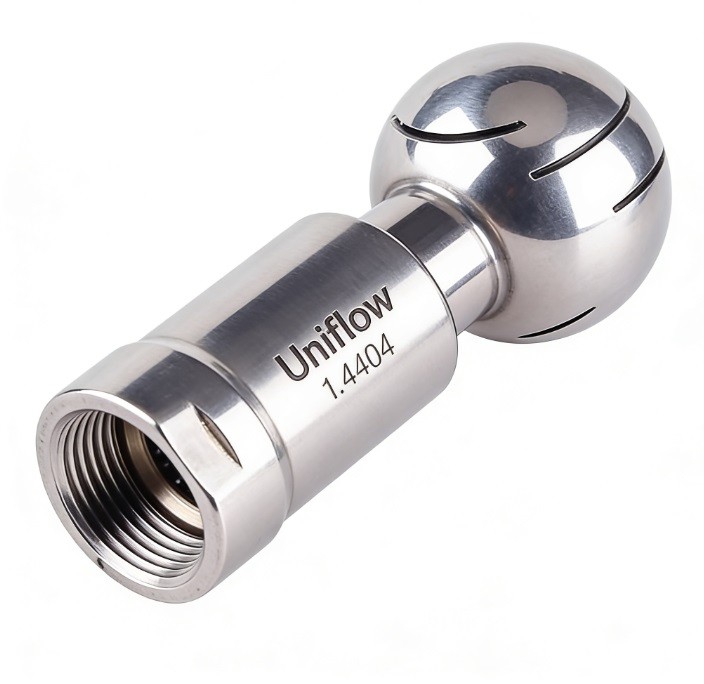

Hygienic Rotary Spray Balls with Screwed Ends are dynamic Tank Cleaning Machines (TCM) designed for high-efficiency CIP. Unlike static balls, these rotate using the cleaning fluid's flow, creating high-impact droplets that mechanically scrub tank walls. The threaded (screwed) end allows for easy installation onto spray lances. Built from 316L Stainless Steel, they ensure 360° coverage with no "dead zones," making them ideal for dairy, brewhouse, and chemical mixing tanks.
Technical Attributes: Hygienic Rotary Spray Ball (Screwed)
Rotation Mechanism,Fluid-driven (Lubricated by cleaning media)
Connection Type,"BSP, BSPT, or NPT Threaded (Female standard)"
Material Grade,AISI 316L Stainless Steel
Spray Pattern,360° Full Coverage (Optional 180° Up or Down)
Operating Pressure,1.0 – 3.0 Bar (14.5–43.5 PSI)
Cleaning Radius,1.0m to 3.0m (Depending on model and pressure)
Flow Rate,2.0–15 m3/h (Size dependent)
Internal Bearings,Double Ball Bearing (Stainless Steel or PEEK)
Surface Finish,Ra≤0.8μm (32μin) External / Ra≤0.5μm Internal
Max Operating Temp,95∘C (203∘F)
Mounting Position,Vertical (Recommended) or Horizontal
Standard Compliance,"FDA-compliant materials, 3-A, or EHEDG design"
