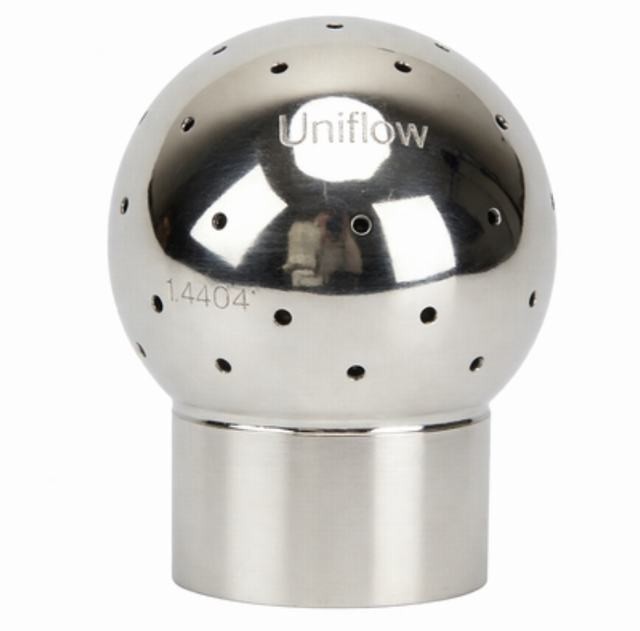

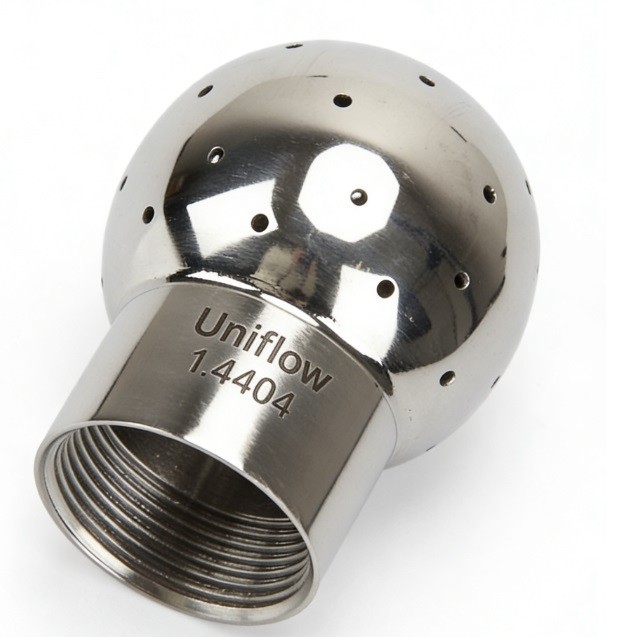

Hygienic CIP Fixed Spray Balls are the industry standard for low-maintenance tank cleaning. Unlike rotary versions, these have no moving parts, using a precision-drilled pattern to deliver a high-volume "cascading" flow that coats tank surfaces. They are exceptionally reliable, cost-effective, and easy to inspect. Made from 316L Stainless Steel, they are ideal for simple rinsing tasks or tanks containing easily cleaned liquids in the dairy, food, and beverage sectors.
Technical Attributes: Hygienic Fixed Spray Ball
Mechanical Design,Static / Non-rotating (No moving parts)
Connection Types,"Clip-on, Threaded (BSP/NPT), or Weld-on"
Material Grade,AISI 316L Stainless Steel
Spray Patterns,"360° (Full), 180° (Up or Down), 270° (Top-heavy)"
Operating Pressure,1.0−2.5 Bar (14.5−36 PSI)
Flow Volume,"High (Relies on a ""falling film"" or cascading effect)"
Hole Diameter,Typically 1.0mm−2.5mm (Precision laser-drilled)
Cleaning Radius,1.0m−4.0m (Depending on size/pressure)
Surface Finish,Internal Ra<0.5μm; External Mirror Polish
Max Temperature,Unlimited by mechanics (200∘C+ depending on material)
Maintenance,Minimal (Periodic inspection for hole blockage)
Standard Compliance,"3-A, FDA, ASME BPE, EHEDG"
