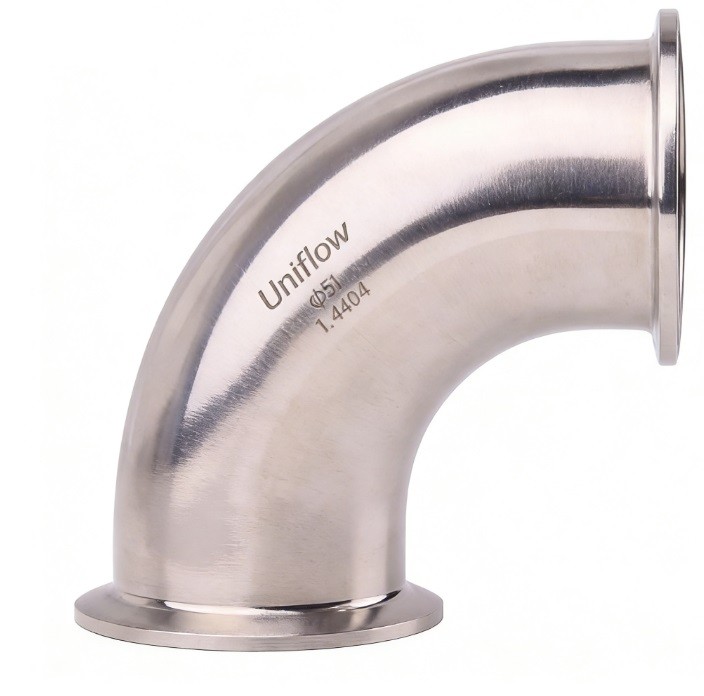

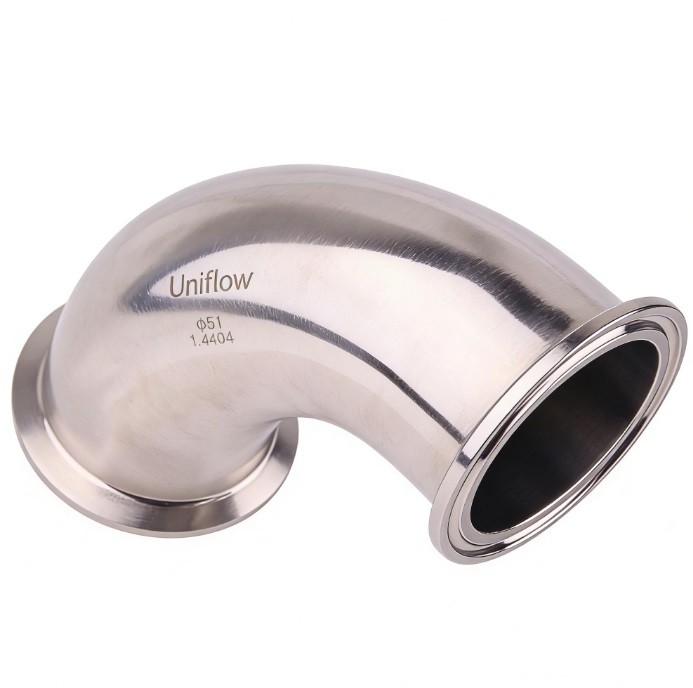

Hygienic Tri-Clamp 90° Elbow (Matte Finish)
A 90° Tri-Clamp elbow changes flow direction by 90 degrees while allowing for rapid manual disassembly. The matte (satin) finish provides a professional, non-reflective exterior that hides scratches and fingerprints better than mirror polishing.
Sanitation: High-polish ID (Ra < 0.8μm) ensures 3A/ASME BPE compliance.
Connection: Secured by standard clamps and gaskets.
Aesthetics: Preferred in breweries and industrial food plants for durability.
Technical Attributes: Tri-Clamp 90° Elbow (Matte)
Component Type,90° Sweep Elbow
Connection Type,Tri-Clamp / Tri-Clover (Ferrule ends)
Material Grade,AISI 316L (Primary) or AISI 304 Stainless Steel
Internal Surface Finish,Ra≤0.51μm (20μin) - SF1 (Polished)
External Surface Finish,Matte / Bead-Blasted (Ra≈0.8 to 1.2μm)
Size Availability,0.5" through 12" (Standard 1.0" - 4.0" most common)
Nominal Pressure,150 PSI at 70°F (Varies with clamp type/gasket)
Seal Compatibility,"EPDM, Silicone, FKM (Viton), PTFE (Teflon)"
Operating Temperature,-20°F to 400°F (Dependent on gasket material)
Standard Compliance,"3-A Sanitary, ASME BPE, DIN 32676"
Cleaning Compatibility,Fully CIP (Clean-in-Place) and SIP (Steam-in-Place)
Traceability,Permanent laser-etched heat number and size
