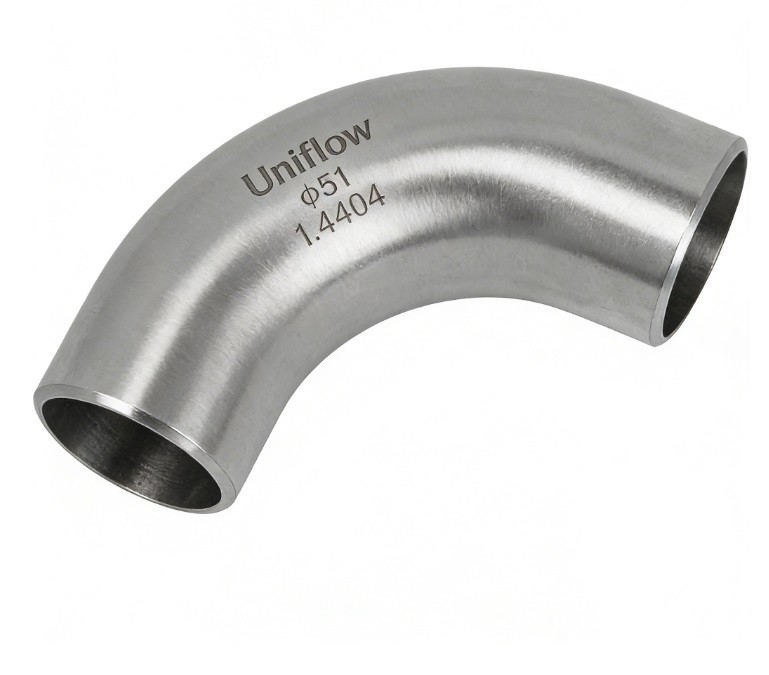

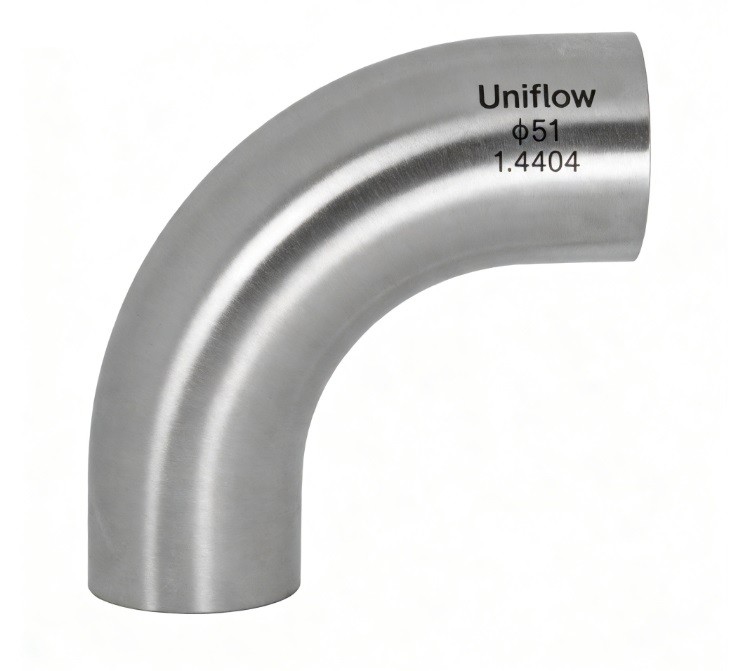

A long radius (LR) plain end elbow is a 90° or 45° fitting where the centerline radius is typically 1.5 times the nominal pipe diameter ($1.5D$). This gradual curve reduces friction, pressure drop, and product shear.Flow: Smoother transition than short radius elbows; ideal for viscous liquids.Connection: Butt-weld ends for permanent, high-purity orbital welding.Finish: Polished ID (Ra < 0.8μm) ensures no bacterial entrapment.
Technical Attributes: Hygienic LR Elbows
Material Grades,"316L Stainless Steel (Standard), 304L (Optional)"
Size Range,0.5" to 6.0" (Standard OD Tube sizes)
Bend Radius,1.5× Nominal Pipe Diameter (1.5D)
End Connection,Plain-end (for Orbital Welding)
Internal Surface Finish,Ra<0.51μm (20μin) – Mechanically Polished or Electropolished
External Surface Finish,Ra<0.8μm (32μin) – Satin or Bright Polish
Wall Thickness,"Scheduled to match Tube OD (e.g., 1.65mm for 1""-3"" sizes)"
Manufacturing Process,Cold formed or Mandrel bent; Annealed and Pickled
Pressure Rating,Up to 150-250 PSI (Depends on temperature and tube thickness)
Standard Compliance,"ASME BPE, 3-A Sanitary Standards, DIN 11852, ISO 2037"
Traceability,Heat numbers laser-etched on body (MTRs available)
Application Suitability,Clean-in-Place (CIP) and Sterilize-in-Place (SIP) compatible
