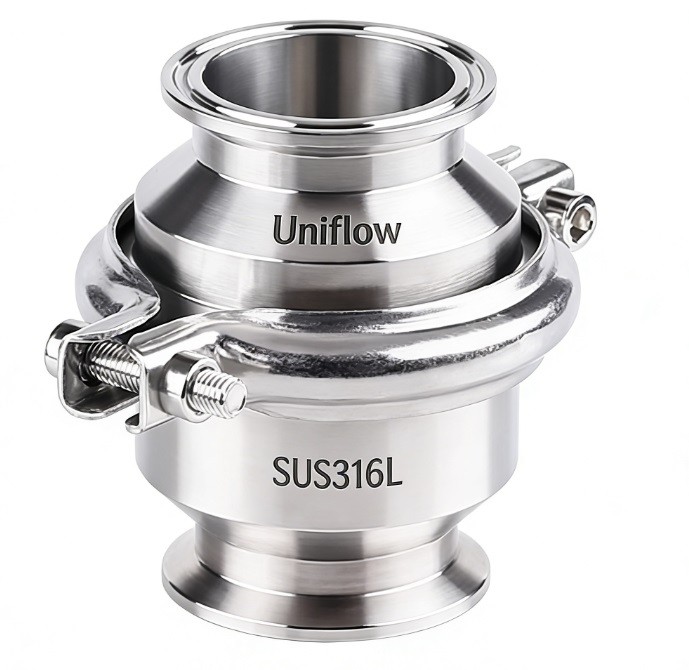

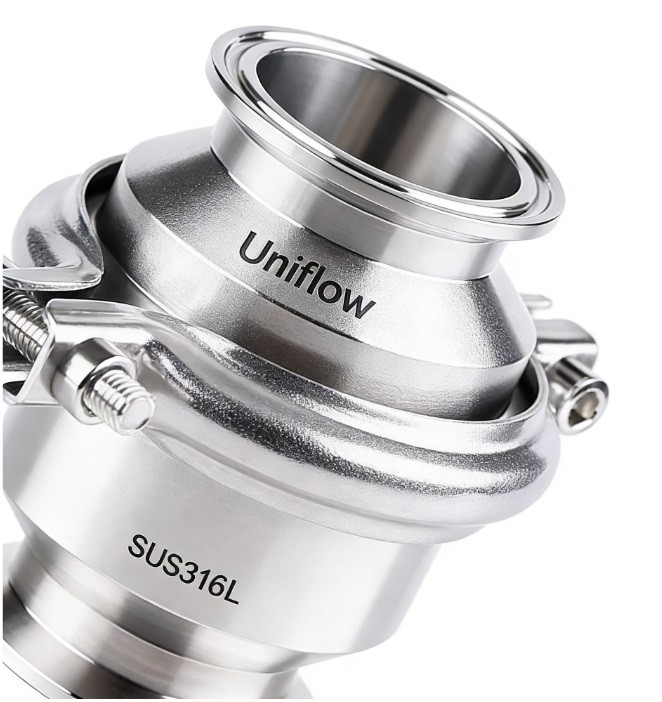

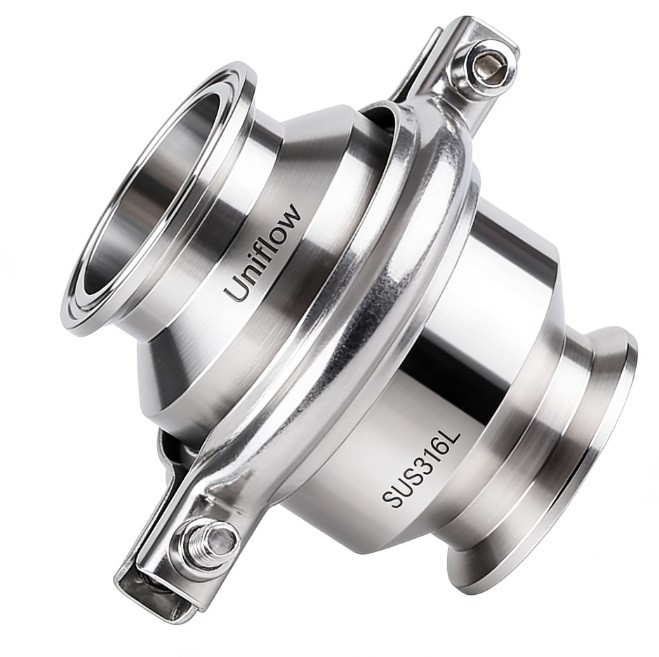

Hygienic Tri-Clamp Non-Return Valve
This valve is a staple in modular sanitary systems. Unlike welded versions, it uses Tri-Clamp (TC) ferrules for rapid installation and removal without tools. It ensures unidirectional flow, protecting sensitive equipment from backflow in food, beverage, and biotech lines.
Design: Two-piece body held by a heavy-duty clamp.
Cleaning: Optimized for "out-of-place" cleaning (COP) or standard CIP.
Ease of Use: Ideal for lines requiring frequent inspection.
Technical Attributes: Hygienic Tri-Clamp Non-Return Valve
1,Body Material,ASTM 316L Stainless Steel for high acid/alkali resistance.
2,Connection Type,Tri-Clamp (ISO/DIN/SMS) ferrules for tool-free assembly.
3,Seal Grade,USP Class VI or FDA-compliant elastomers (EPDM/PTFE/FKM).
4,Surface Treatment,Electropolished or mechanical polish to Ra < 0.4–0.8 μm.
5,Spring Type,Sanitary-grade tapered or helical spring in 316L/304.
6,Cracking Pressure,Adjustable or fixed opening at approx. 0.05 to 0.3 bar.
7,Pressure Rating,Max working pressure typically 10 bar (145 psi).
8,Thermal Range,Continuous duty from −10°C to +120°C (up to +140°C for SIP).
9,Maintenance,Pop-out internals for rapid inspection or seal replacement.
10,Sterilization,Full compatibility with SIP (Steam-In-Place) sterilization.
11,Orientation,Optimized for vertical installation to ensure full drainability.
12,Standards,"Complies with 3-A, FDA, and BPE (Bioprocessing Equipment)."
13,Housing Design,Two-piece split body design secured by a heavy-duty clamp.
14,Flow Dynamics,Low-turbulence internal geometry to prevent product shearing.
15,Traceability,Heat numbers laser-etched on the body for material certification.
