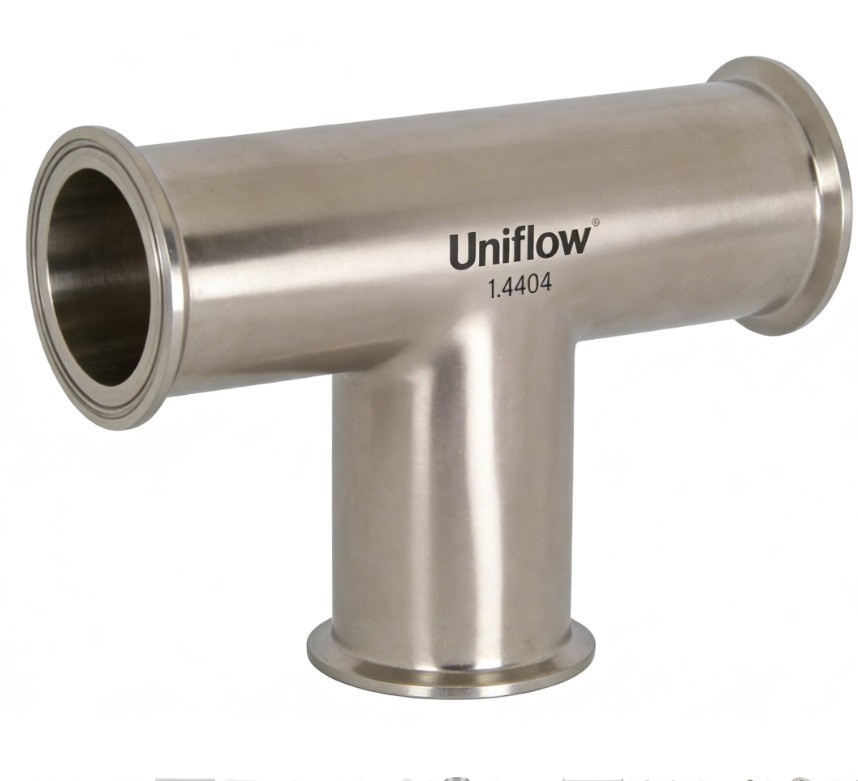

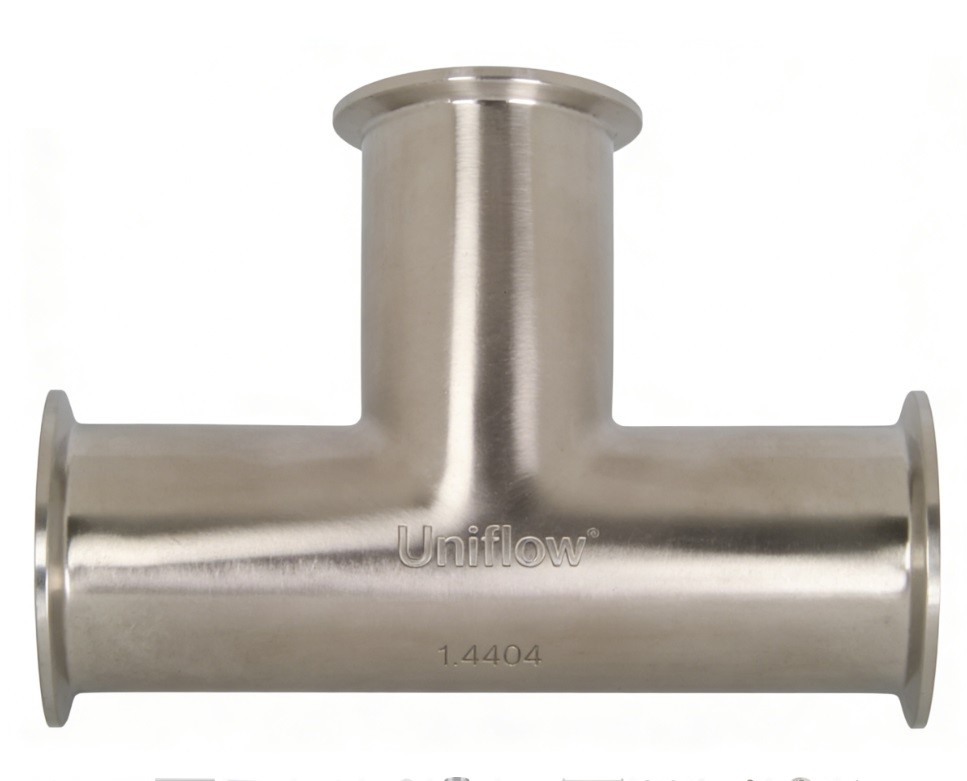

A Tri-Clamp Equal Tee is a T-shaped fitting used to branch a pipeline at a 90-degree angle while maintaining the same diameter on all three ports. Secured by clamps and gaskets, it allows for fast disassembly, making it the gold standard for systems requiring frequent manual cleaning or inspection.
Fast Access: Modular design for quick teardown.
Sanitary: 3A/ASME BPE compliant with high-polish internal finishes.
Safety: Leak-proof, high-pressure seal with proper gasket seating.
Attribute,Specification / Detail
Material Grades,AISI 316L (Standard) or AISI 304 Stainless Steel
Branch Type,Equal Tee (Main run and branch port share identical diameters)
Connection Type,Tri-Clamp / Sanitary Flange (per ASME BPE or DIN 32676)
Internal Surface Finish,Ra ≤ 0.8μm (32μin) standard; Ra ≤ 0.4μm (15μin) for pharma
External Surface Finish,"Mirror Polish, Satin, or Brushed (Grit 180–400)"
Compliance Standards,"3A, ASME BPE, DIN, SMS, ISO 2852"
Gasket Materials,"EPDM, Silicone, FKM (Viton), PTFE (Teflon), Tuf-Steel"
Pressure Rating,10 to 15 Bar (Highly dependent on clamp and gasket type)
Temperature Range,-20°C to +200°C (Governed by gasket selection)
Size Range,1/2" to 12" (DN10 to DN300)
Weld Quality,Full penetration welding with internal bead removal/polishing
Cleaning Method,"Suitable for COP (Clean-Out-of-Place), CIP, and SIP"
