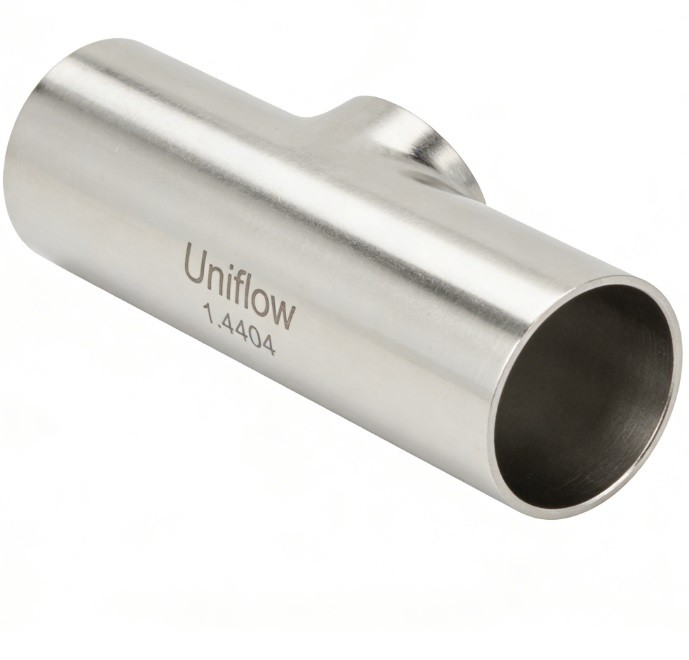

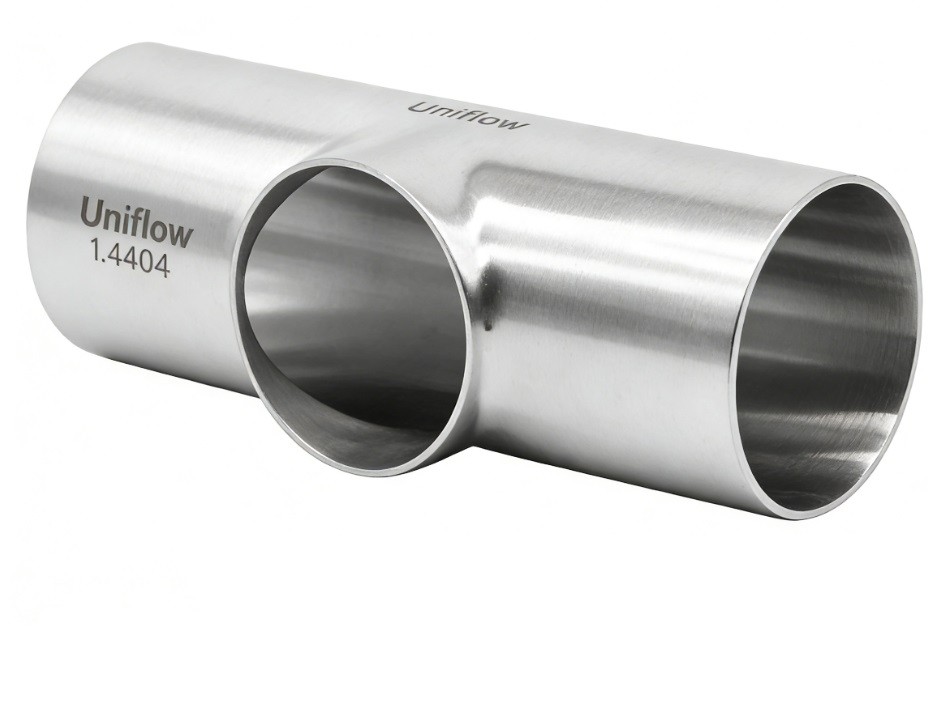

A pulled equal tee is manufactured by "pulling" the branch port directly from the main tube body rather than welding a separate piece. This results in a seamless transition with large, smooth radiuses that eliminate sharp corners.
Hygiene: Superior flow dynamics; no weld beads at the branch junction.
Cleaning: Ideal for CIP systems as it minimizes turbulence and entrapment.
Ends: Available in Plain End or Tri-Clamp.
Attribute,Specification / Detail
Material Grades,AISI 316L (standard) or AISI 304 Stainless Steel
Manufacturing Process,Pulled (Extruded) – Branch is formed from the main tube body
Branch Geometry,Equal Tee (Branch OD matches Main Run OD)
Transition Style,"Large, smooth radius at junction to eliminate ""dead zones"""
End Connections,Plain End (Butt-weld) or Tri-Clamp (Sanitary Flange)
Internal Finish,Ra ≤ 0.5μm to 0.8μm; Electropolishing available for high-purity
Compliance Standards,"3A, ASME BPE, DIN 11865, SMS, ISO 2037"
Wall Thickness,"Uniform thickness maintained throughout the ""pull"" (e.g., 1.5mm, 1.65mm)"
Size Range,1/2" to 6" (DN10 to DN150) typically
Flow Dynamics,Low turbulence and reduced pressure drop compared to welded tees
Cleaning Suitability,Optimized for high-velocity CIP (Clean-in-Place) and SIP
Traceability,Fully traceable with heat numbers and MTR certification
