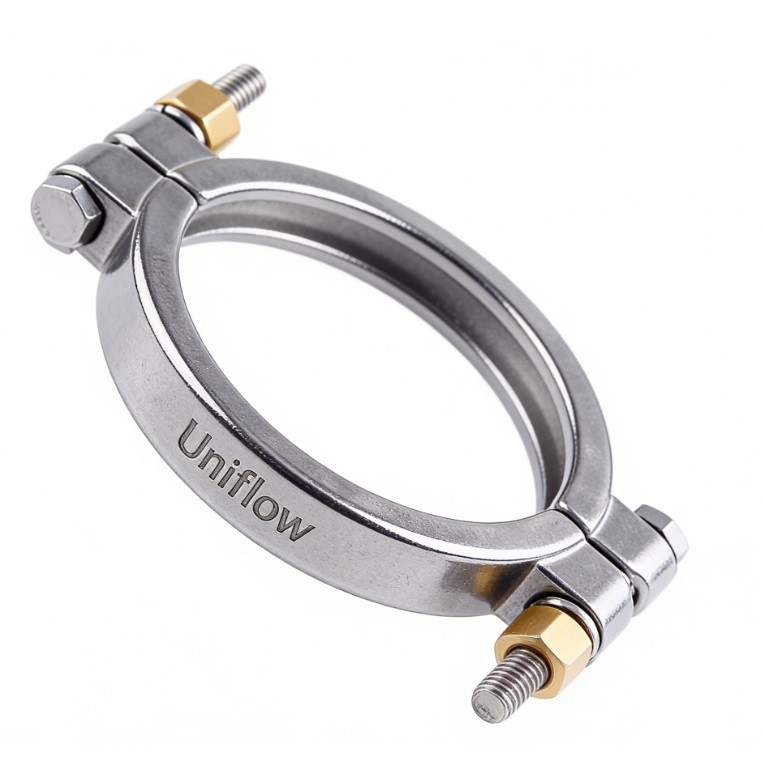

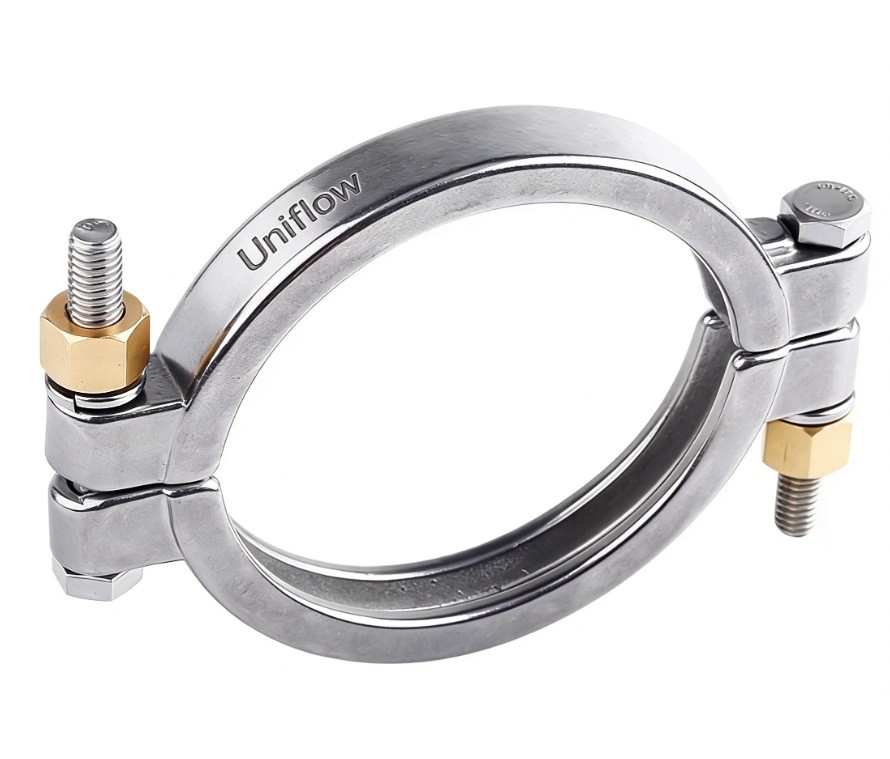

Tri-Clamp High Pressure Clamps are heavy-duty fasteners designed for sanitary systems operating under elevated pressures or temperature fluctuations. Unlike standard wing-nut clamps, these feature a double-bolt or reinforced hinge design to ensure a uniform, high-torque seal. Made from 304 or 316 Stainless Steel, they prevent gasket cold flow and accidental blowouts. They are critical for steam lines, filtration skids, and high-viscosity pumping in food and pharma.
Technical Attributes: Tri-Clamp High Pressure Clamp
Component Name,High Pressure Bolted Clamp (13MHP)
Closure Type,Dual Bolt or Single Bolt with heavy-duty hinge
Fastener Material,304 Stainless Steel (Standard) or 316 Stainless Steel
Body Material,Investment Cast 304 or 316 Stainless Steel
Size Range,0.5" through 12.0" (Standard OD sizes)
"Max Pressure (1"")","~1,500 PSI @ 70°F (Varies by manufacturer)"
"Max Pressure (4"")",~600 PSI @ 70°F (Significantly higher than wing-nut)
Nut Style,Hex Nut (standard) or Wing Nut (on some heavy-duty versions)
Service Temperature,Matches gasket limits (up to 450°F with PTFE/Viton)
Standard Compliance,"3-A Sanitary Standards, ASME BPE"
Finish,Tumble Finish or Electropolished
Safety Feature,Prevents accidental manual opening (requires tools)
