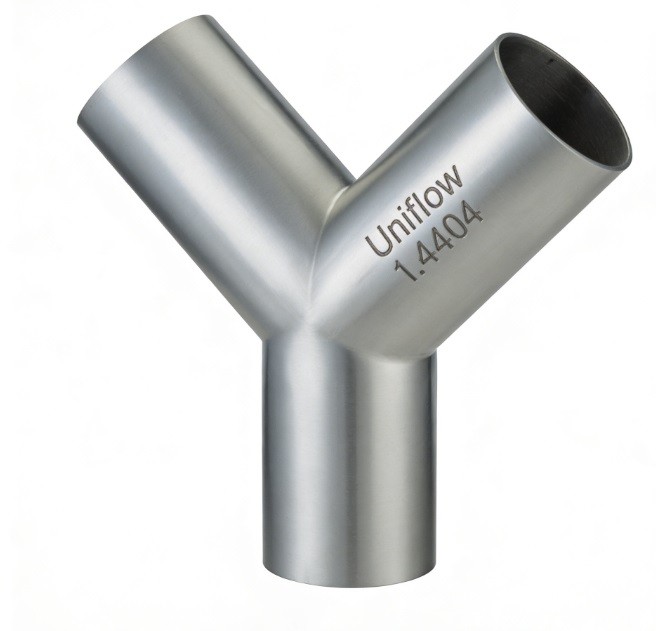

A plain end Y-shape tee (also called a 405° lateral) allows for a smooth, directional branch at a 45° angle. Unlike 90° tees, the Y-shape reduces turbulence and shear stress on sensitive fluids. Designed for permanent butt-weld installation, it ensures a seamless, crevice-free connection.
Flow: Superior directional flow for piggable systems or viscous fluids.
Sanitation: Polished ID (Ra < 0.8μm) for CIP efficiency.
Material: Typically 316L for high corrosion resistance.
Attribute,Specification / Detail
Material Grades,AISI 316L (standard for welding) or AISI 304
Angle of Branch,45° Degree (Lateral)
Connection Type,Plain End / Butt-weld (Extended for orbital welding)
Internal Surface Finish,Ra ≤ 0.51μm (20μin) to Ra ≤ 0.8μm (32μin)
External Surface Finish,"Satin, Mirror Polish, or Brushed (Grit 180–400)"
Compliance Standards,"3A, ASME BPE, DIN 11865, SMS, ISO 2037"
Wall Thickness,"Matches tube standards (1.2mm, 1.5mm, 1.65mm, 2.0mm)"
Nominal Sizes,1/2" to 6" (DN10 to DN150) typically
Weld Quality,Full penetration welds with internal bead grinding/polishing
Flow Characteristic,Low shear and reduced turbulence compared to 90° tees
Pressure Rating,Consistent with equivalent thickness straight tubing
Sanitation Compatibility,Fully optimized for CIP (Clean-in-Place) and SIP
