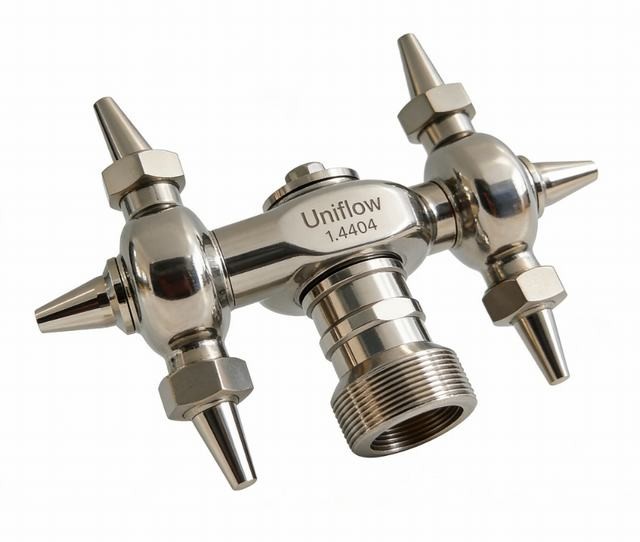

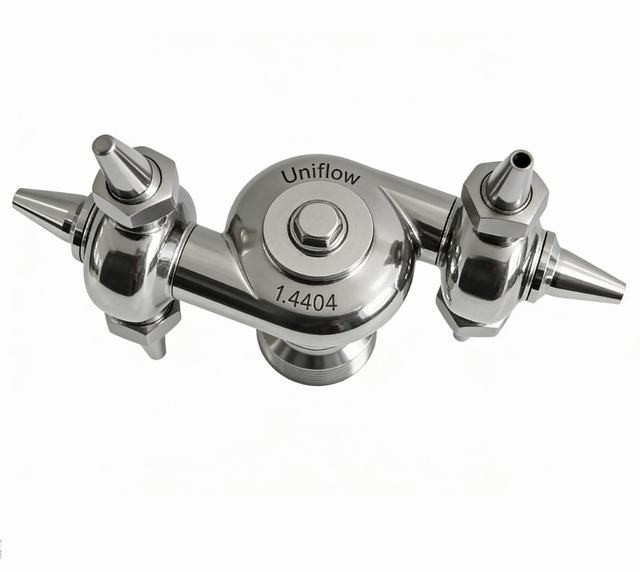

Hygienic Universal Rotary Spray Balls offer maximum installation flexibility for high-efficiency tank cleaning. The "Universal" designation typically refers to a design compatible with various connection styles—such as clip-on, threaded, or weld-on—or a head engineered for multi-directional 360° coverage. Driven by the cleaning media, they provide dynamic mechanical scrubbing while minimizing water use. Made from 316L Stainless Steel, they are the versatile choice for pharmaceutical and food process vessels.
Technical Attributes: Hygienic Universal Rotary Spray Ball
Cleaning Action,Dynamic / Rotary (Fluid-driven)
Mounting Orientation,Universal (360° operation; Vertical or Horizontal)
Material Composition,AISI 316L Stainless Steel (1.4404)
Internal Bearings,High-grade Stainless Steel or Carbon/PEEK races
Operating Pressure,1.0−3.0 Bar (Optimal at 2.0 Bar)
Flow Rate Range,3.5−35 m3/h (Size dependent)
Connection Options,"Threaded (BSP/NPT), Clip-on, or Weld-on"
Max Cleaning Radius,Up to 3.5m (Effective mechanical impact)
Internal Surface Finish,Ra≤0.5μm (20μin) – Electropolished
External Surface Finish,Ra≤0.8μm (32μin) – Mirror or Satin
Rotation Speed,10−30 RPM (Regulated by fluid pressure)
Standards Compliance,"FDA, 3-A, ASME BPE, EHEDG"
