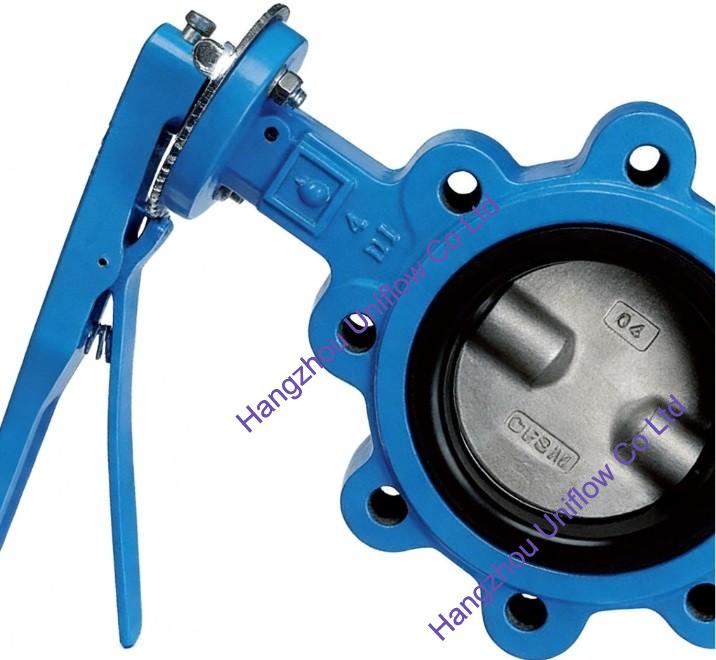

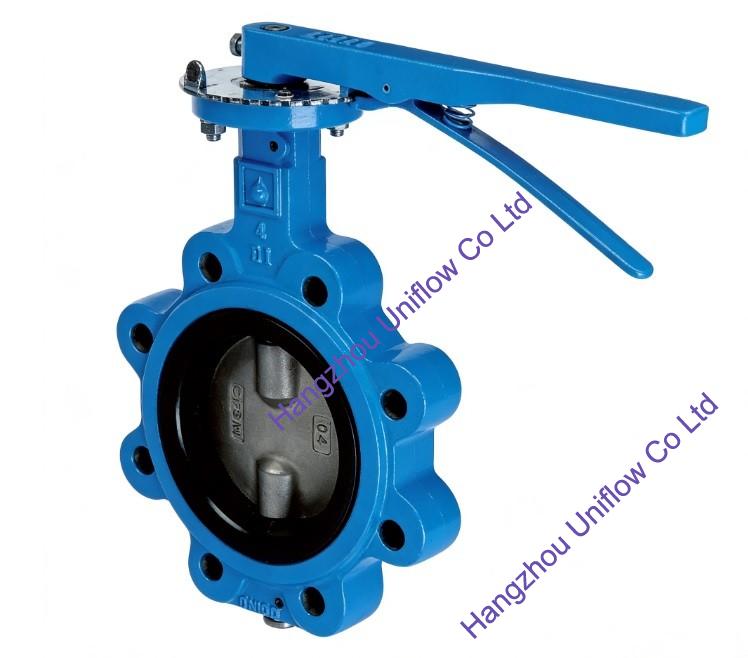

Centric lug butterfly valves are a type of quarter-turn valve commonly used for on/off or throttling service in piping systems. They feature a disc mounted on a central shaft (concentric design) and lugs—protruding ears with bolt holes—cast or machined into the valve body. These lugs allow the valve to be installed between two pipe flanges using separate sets of bolts for each flange, enabling easy removal of downstream piping without disturbing the upstream side.
Technical Attributes
1,Design Standard,API 609 / EN 593 / BS 5155
2,Body Style,Lug Type (Threaded bolt holes)
3,Seating Design,Centric (Concentric) / Resilient Soft Seat
4,Face-to-Face,API 609 Table 1 / EN 558 Series 20 / ISO 5752
5,Pressure Rating,PN10 / PN16 / ASME Class 150
6,Size Range,DN40 to DN1200
7,Dead-End Service,Suitable (Allows downstream piping removal)
8,Body Material,Ductile Iron (GGG40/50) / Cast Steel (WCB)
9,Disc Material,"Stainless Steel (CF8/CF8M), Al-Bronze, or Ductile Iron"
10,Seat (Liner) Material,"EPDM, NBR, Viton (FKM), or PTFE"
11,Stem (Shaft) Material,SS410 / SS416 / SS420 / SS316
12,Stem Design,Anti-blowout / Spline or Pin connection
13,Upper Flange Mounting,ISO 5211 (Standardized for actuators)
14,Testing Standard,API 598 / EN 12266-1
15,Tightness Class,Class VI (Zero leakage/Bubble-tight)
16,Coating,"Fusion Bonded Epoxy (FBE), Min. 200-250 microns"
17,Operation,"Lever, Worm Gear, Pneumatic, or Electric"
18,Bushings,PTFE or Bronze (Reduces friction/torque)
19,Temperature Range,−20°C to +120°C (Based on seat material)
20,Fluid Compatibility,"Water, Air, Oil, Dilute acids, Sewage"
21,Flow Direction,Bi-directional sealing
