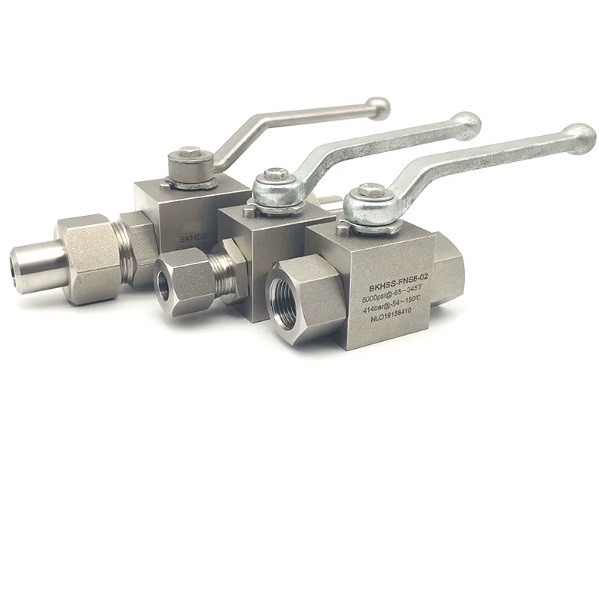

BKH series high pressure hydraulic ball valve stainless steel

The BKH series high-pressure hydraulic ball valve is expertly manufactured from robust forged stainless steel to command severe fluid isolation. Rated for 6000 PSI (414 bar) and featuring secure female threaded or compression ends, this straight-through block valve ensures zero-leakage reliability and effortless operation across high-pressure hydraulic and instrumentation networks.

Download

Detailed Product Introduction

The BKH series high-pressure stainless steel ball valve is a premier solution for heavy-duty fluid control in high-pressure hydraulic configurations, fluid sampling pipelines, and critical instrumentation skids. CNC-machined from supreme high-density forged stainless steel square blocks, this valve is structurally reinforced to master working pressures up to 6000 PSI (414 bar) without deformation. Equipped with a heavy-duty stainless steel or zinc-alloy lever handle, it delivers low operating torque and instantaneous quarter-turn positive shut-off. Its straight-through design ensures an unrestricted fluid path, effectively eliminating cavitation and minimizing pressure drop. Proven to operate flawlessly in ambient extremes from -54°C to +150°C, it represents the industrial standard for offshore oil rigs, chemical processing plants, and high-pressure gas distribution utilities.

Technical Specifications

Valve Classification: BKH Series High-Pressure Hydraulic Block Ball Valve
Body Configuration: Heavy-Duty Forged Square Body Design (Straight-Through Pattern)
Primary Body Material: Premium Forged Stainless Steel 316 (SS316) / SS316L / SS304
Ball and Stem Metallurgy: Precision-ground Stainless Steel 316 ensuring perfect roundness
Valve Seat Material: High-density POM-MoS2 (Delrin) / PEEK to handle heavy friction under 414 bar loads
Stem Seals Matrix: Double O-ring backup protection using premium Fluorocarbon FKM / NBR
Maximum Working Pressure: 6000 PSI (414 Bar / 41.4 MPa) robust structural hydraulic tier
Temperature Operational Spectrum: Rated securely from -54°C up to +150°C (-65°F to +345°F)
Inlet/Outlet Port Styles: High-precision Female NPT, BSPT, G Thread, or Double-Ferrule Tube Fittings
Available Port Sizes: 1/4", 3/8", 1/2", 3/4", up to 1" (DN6 to DN25 standard sizes)
Flow Flow Path Profile: Full-bore (FB) or reduced-bore (RB) options minimizing system fluid turbulence
Stem Engineering Protections: Anti-blowout internal stem arrangement for guaranteed field operator safety
Handle Actuation Mechanism: Ergonomic flat metal lever handle with plastic sleeve coating for stable grip
Locking Capability: Optional integrated padlocking device to prevent unauthorized plant operations
Leakage Integrity Standard: Exceeds ANSI Class VI ratings / Rate A according to EN 12266-1 (Zero-leakage)
Applicable Media Profile: Mineral hydraulic oils, water-glycol emulsions, high-pressure nitrogen, chemical solvents, and light crude oil
Shell Hydrostatic Validation: Verified through high-pressure water bench testing at 1.5 times the maximum rated engineering limit
External Surface Aesthetics: Fine matte-brushed sandblasted finish with permanently laser-etched specification markings
Design Compliance Criteria: Engineered and verified under strict adherence to ASME B16.34, API 598, and DIN 24291
Cleanliness Standard: Internally degreased, particles evacuated, and capped with vinyl thread protectors for dispatch
