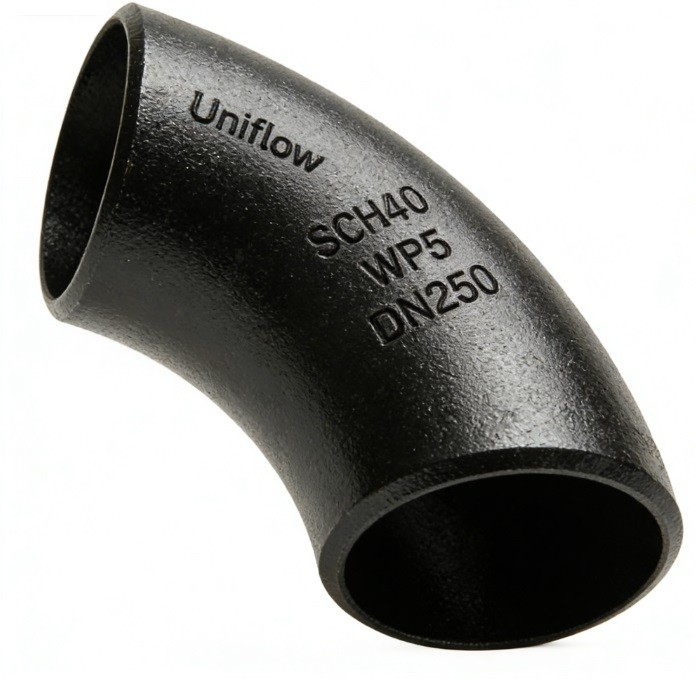

The ASTM A234 WP5 LR 90° Elbow is a high-alloy steel fitting designed for high-temperature and corrosive service. Containing 5% Chromium and 0.5% Molybdenum, the WP5 grade offers superior oxidation resistance and creep strength, making it essential for oil refineries and chemical plants. As a Long Radius (LR) elbow, it provides a smooth 1.5D turn to minimize pressure drop. The Butt Welding (BW) ends ensure a permanent, leak-proof connection capable of withstanding extreme thermal cycling.
Technical Attributes: ASTM A234 WP5 LR 90° Elbow
Material Grade,ASTM A234 WP5 (5% Cr - 0.5% Mo)
Fitting Type,90 Degree Long Radius (LR) Elbow
Center-to-End Dim,1.5× Nominal Pipe Size (1.5D)
Manufacturing Std,ASME B16.9 / MSS SP-75
End Connection,Butt Welding (BW)
End Preparation,Beveled Ends (per ASME B16.25)
Size Range,1/2" to 48" (DN15 - DN1200)
Wall Thickness,"SCH 40, SCH 80, SCH 160, SCH XXS"
Heat Treatment,Annealed or Normalized and Tempered
Chromium Content,4.00%–6.00%
Molybdenum Content,0.44%–0.65%
Tensile Strength,≥415 MPa (60 ksi)
Yield Strength,≥205 MPa (30 ksi)
Hardness,≤197 HBW
Testing Standard,"Hydrostatic, Tensile, Hardness, NDT (UT/RT)"
Surface Treatment,Anti-rust Oil / Transparent Coating
Traceability,Heat Number Hard Stamped
Certification,EN 10204 3.1 / MTR
Applicable Service,High Temp Refinery / Hydrocarbon Processing
