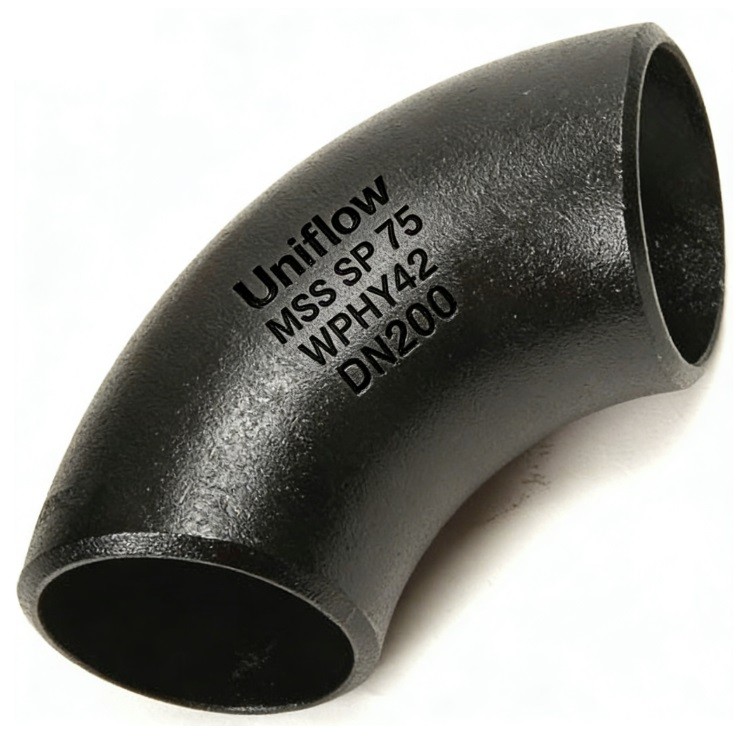

The MSS SP-75 Carbon Steel Butt Weld Elbow is a high-test fitting specifically engineered for high-pressure gas and oil transmission systems. Unlike standard ASME B16.9 fittings, it adheres to higher yield strength requirements (Grades WPHY 42 to WPHY 70). These elbows are designed to match the high-strength pipes used in cross-country pipelines, providing superior fracture toughness and weldability while maintaining a smooth Long Radius flow profile to minimize pressure drop.
Technical Attributes: MSS SP-75 Carbon Steel Elbow
Design Standard,MSS SP-75 (High-Test Wrought Butt-Welding Fittings)
Material Grades,"WPHY 42, 46, 52, 60, 65, 70"
Yield Strength,290 MPa to 485 MPa (42 ksi to 70 ksi)
Tensile Strength,≥415 MPa to ≥565 MPa
Size Range,16" to 60" (Typically Large Diameter)
Wall Thickness,Matches High-Yield API 5L Line Pipe
End Connection,Butt Welding (BW)
End Preparation,Beveled per ASME B16.25
Radius Type,Long Radius (1.5D) / 3D / 5D Bends
Manufacturing,Seamless or Welded (with 100% NDT)
Heat Treatment,"Normalizing, Quenching, and Tempering"
Impact Testing,Charpy V-Notch (Required for Low Temp)
Carbon Equiv.,CE≤0.45% (To ensure Weldability)
Nondestructive,UT or RT for Welds; MT/PT for Surfaces
Pressure Rating,Calculated per ASME B31.8 or B31.4
Surface Finish,Black Bitumen or FBE (Fusion Bonded Epoxy)
Tolerance,Stricter than ASME B16.9 for Out-of-Roundness
Certification,EN 10204 3.1 (Includes Chemical & Mech Properties)
