Introduction

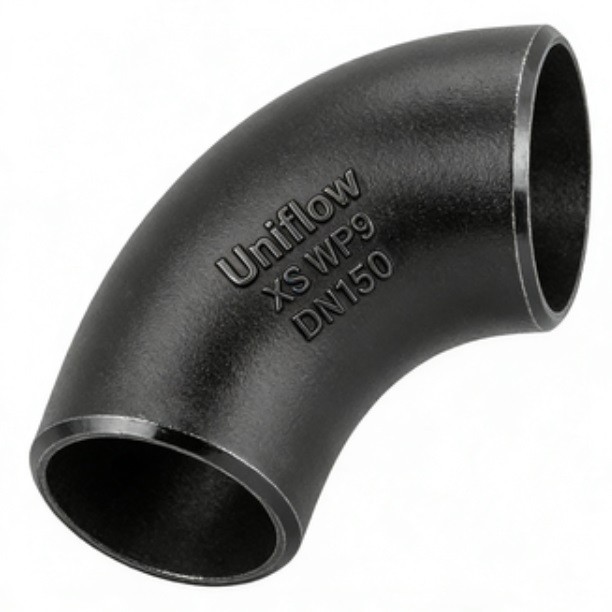

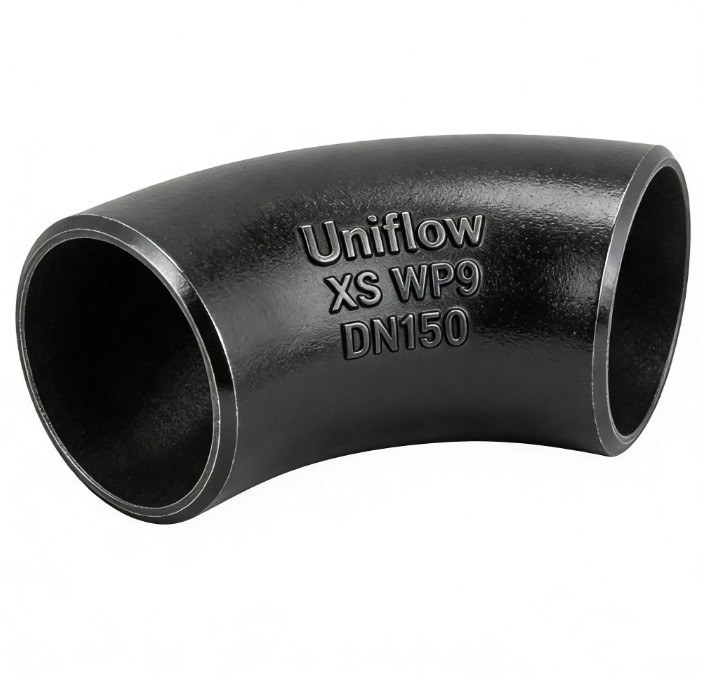

The ASTM A234 WP9 LR 90° Elbow is a premium alloy steel fitting designed for high-temperature and high-pressure service. Containing 9% Chromium and 1% Molybdenum, WP9 provides superior resistance to graphitization, oxidation, and hydrogen attack compared to WP5. The Long Radius (LR) design ensures a smooth 1.5D transition, reducing turbulence. With Butt Welding (BW) ends, it creates high-strength joints essential for power plant headers and refinery catalytic crackers
Technical Attributes: ASTM A234 WP9 LR 90° Elbow
Material Grade,ASTM A234 WP9 (9% Cr - 1% Mo)
Fitting Type,90 Degree Long Radius (LR) Elbow
Center-to-End Dim,1.5× Nominal Pipe Size (1.5D)
Manufacturing Std,ASME B16.9 / MSS SP-75
End Connection,Butt Welding (BW)
End Preparation,Beveled Ends per ASME B16.25
Size Range,1/2" to 48" (DN15 - DN1200)
Wall Thickness,"SCH 40, SCH 80, SCH 160, SCH XXS"
Chromium Content,8.00%–10.00%
Molybdenum Content,0.90%–1.10%
Heat Treatment,Normalized and Tempered / Annealed
Tensile Strength,≥415 MPa (60 ksi)
Yield Strength,≥205 MPa (30 ksi)
Hardness,≤179 HBW
Testing Standard,"Hydrostatic, UT, MT, RT (Optional)"
Surface Treatment,Anti-rust Oil / Transparent Coating
Traceability,Heat Number Hard Stamped
Certification,EN 10204 3.1 / MTR
Applicable Service,High-Temp Power Gen / Petrochemical
