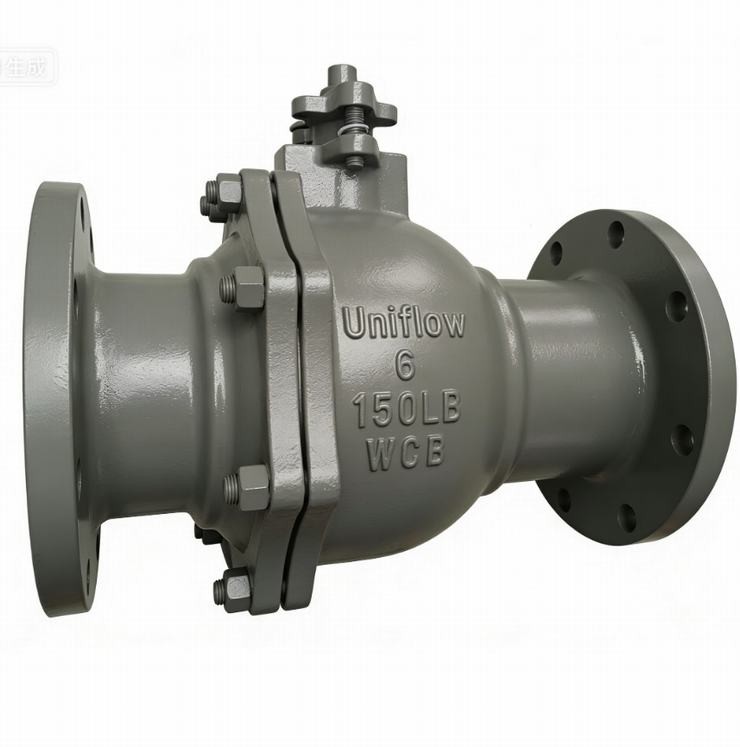

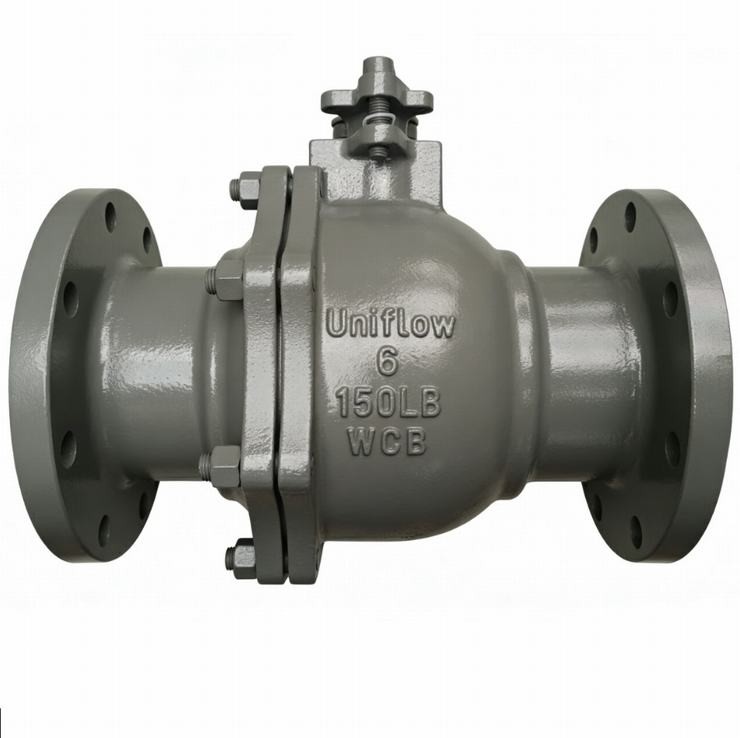

ANSI Cast Steel 2 Piece Floating Ball Valve Wcb 150lb 6inch

Technical Attributes: ANSI WCB 2-Piece Ball Valve $6"$ 150lb

Body Material,ASTM A216 Grade WCB (Carbon Steel)

Nominal Size,"6"" (DN150)"

Pressure Class,ASME Class 150

Construction,"2-Piece Split Body, Bolted"

Ball Type,Floating Ball Design

Bore Design,Full Bore (Unrestricted Flow)

End Connection,Flanged Raised Face (RF)

Flange Standard,ASME B16.5

Face-to-Face Dim,"ASME B16.10 (15.5""/394 mm)"

Ball Material,ASTM A182 F304 or SS316

Seat Material,RPTFE (Reinforced Teflon)

Stem Design,Blow-out Proof Stem

Fire Safety,API 607 / ISO 10497 Certified

Anti-Static,Integrated Ball-Stem-Body Grounding

Actuation Pad,ISO 5211 Standard

Operation,"Gearbox with Handwheel (Recommended for 6")"

Temperature Range,−29℃ to +200℃

Pressure Rating,285 PSI @ Ambient

Testing Standard,API 598 / API 6D

NACE Compliance,MR0175 (Optional)

Coating,Black Primer / Epoxy Finish
