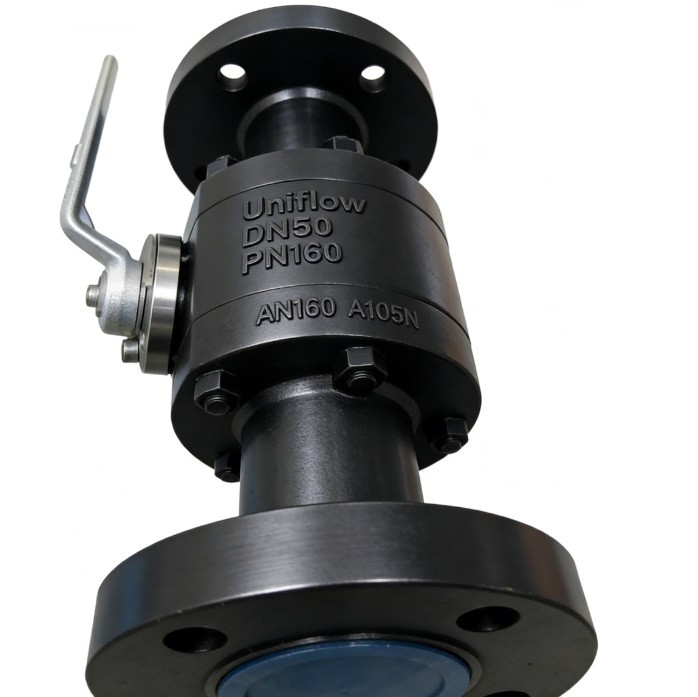

The DIN Standard Forged Steel 3-Piece Ball Valve (PN160 DN50) is a high-pressure powerhouse designed for the most demanding European industrial standards. Forging ensures a dense, pore-free grain structure, making it far superior to cast valves for high-stress applications. The 3-piece design allows for easy "swing-out" maintenance, while the PN160 rating handles extreme pressures up to 160 bar. It is the gold standard for high-pressure gas, hydraulic oil, and steam systems.
Technical Attributes: Forged Steel 3-Piece Ball Valve PN160
Body Material,Forged Steel (ASTM A105 / 1.0460)
Nominal Diameter,DN50 (2 Inch)
Pressure Rating,PN160 (160 Bar / 2320 PSI)
Standardization,DIN EN 17292 / ISO 17292
Body Construction,3-Piece Bolted (Forged)
Bore Design,Full Bore (High Flow Capacity)
End Connections,Flanged (DIN EN 1092-1 Type 21) or Butt Weld
Ball Material,A182-F304 / F316 Stainless Steel
Seat Material,PEEK or Devlon (High Pressure Grade)
Stem Design,Blow-out Proof / Anti-Static Device
Sealing Gasket,Spiral Wound SS316 + Graphite
Face-to-Face,DIN EN 558 Series 1 (or Manufacturer Std)
Temperature Range,−29℃ to +250℃ (Seat dependent)
Operation,Heavy Duty Lever (Lockable)
Top Flange Pad,ISO 5211 (For Direct Actuation)
Testing Standard,EN 12266-1 / API 598
Surface Treatment,Phosphated or Black Oxide Coating
Stem Packing,Live-loaded Graphite V-Rings
Compliance,PED 2014/68/EU / CE Marked
Fire Safety,API 607 / ISO 10497 (Optional)
