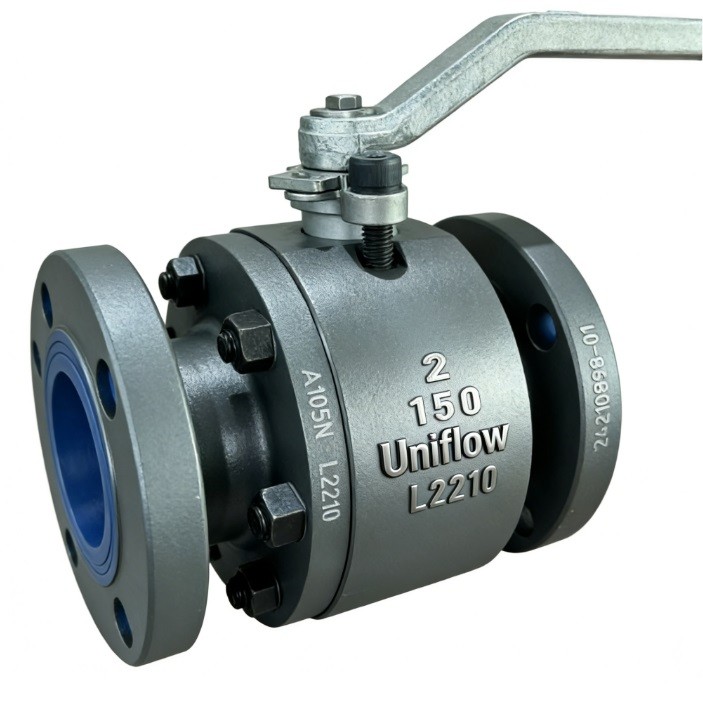

The 2-PC 150LBS ASME B16.34 Forged Ball Valve is a high-integrity isolation valve constructed from ASTM A105N (Normalized) carbon steel. The forging process ensures a dense, pore-free grain structure, providing superior safety and impact toughness over cast alternatives. Built to ASME B16.34 standards, it features a split-body design for easy maintenance and a Class 150 rating. It is a rugged choice for oil, gas, and industrial steam applications where structural reliability is paramount.
Technical Attributes: 2-PC Forged A105N Ball Valve (Class 150)
Body Material,"ASTM A105N (Forged Carbon Steel, Normalized)"
Pressure Class,ASME Class 150 (150LB)
Design Standard,ASME B16.34 / API 6D / ISO 17292
Construction,"2-Piece Split Body, Bolted"
Ball Type,Floating Ball (Trunnion available for larger sizes)
Bore Design,Full Bore (Unrestricted Flow)
End Connection,Flanged Raised Face (RF)
Flange Standard,ASME B16.5
Face-to-Face Dim,ASME B16.10
Ball Material,A105 + ENP (Electroless Nickel Plated) or SS304
Seat Material,Reinforced PTFE (RPTFE) or Devlon
Stem Design,Blow-out Proof Stem
Fire Safety,API 607 / ISO 10497 Certified
Anti-Static Device,Integrated Ball-Stem-Body Grounding
Actuation Pad,ISO 5211 for Direct Mounting
Temperature Range,−29℃ to +200℃ (Seat dependent)
Pressure Rating,285 PSI @ Ambient Temperature
Testing Standard,API 598 / API 6D
NACE Compliance,MR0175 (Optional)
Coating,Black Phosphated or Epoxy Primer
Bolting Material,ASTM A193 B7 (Studs) / A194 2H (Nuts)
