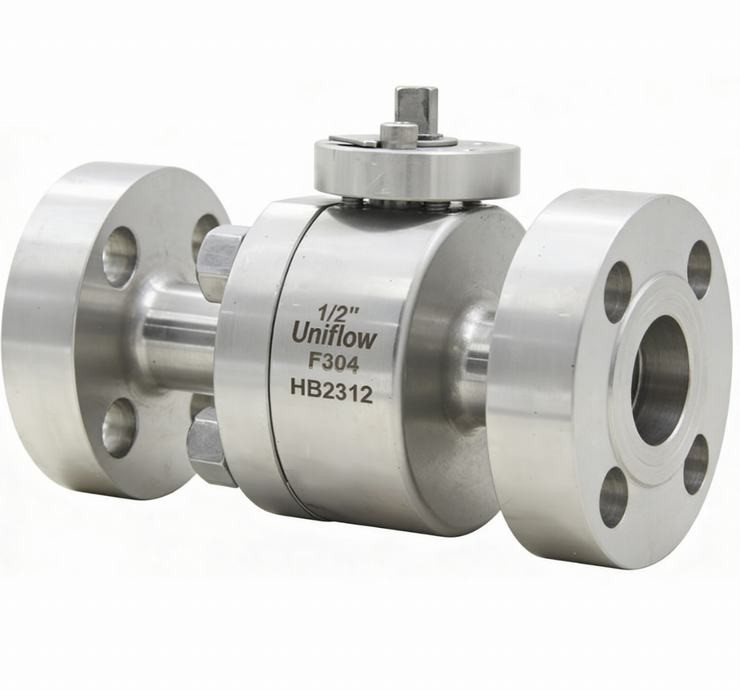

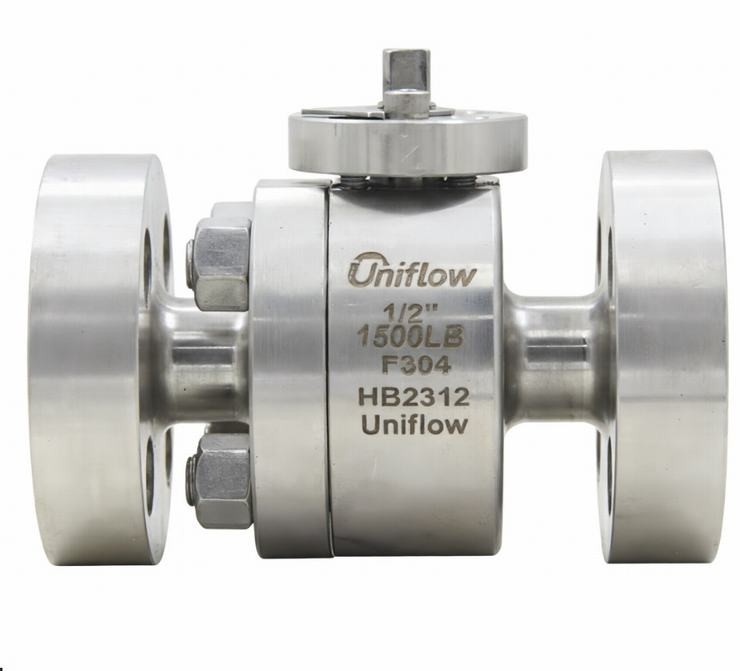

The Stainless Steel F304 1500LB Forged Ball Valve is a high-performance isolation solution engineered specifically for high-pressure gas and natural gas transport. The F304 forged body eliminates porosity, ensuring structural integrity under a massive 1500LB (approx. 250 bar) rating. Its flanged design allows for secure installation, while specialized gas-grade seals prevent fugitive emissions. It is ideal for CNG stations, gas processing, and high-pressure manifolds.
Technical Attributes: F304 1500LB Forged Ball Valve
Body Material,ASTM A182-F304 (Forged Stainless Steel)
Pressure Class,ASME Class 1500 (1500LB)
Nominal Pressure,25.0 MPa (250 Bar)
Service Media,"Natural Gas, CNG, LPG, Inert Gases"
Bore Design,Full Bore (Maximum Flow Efficiency)
End Connection,Flanged Raised Face (RF) or RTJ
Flange Standard,ASME B16.5
Design Standard,API 6D / ASME B16.34
Face-to-Face Dim,ASME B16.10 Class 1500
Ball Material,ASTM A182-F304 / F316 (Hard Chrome Plated)
Seat Material,PEEK / Devlon / Nylon (High-Pressure Grade)
Stem Design,Anti-Blowout / Anti-Static Device
Fire Safety,API 607 / ISO 10497 Certified
Seal Type,O-Ring + Graphite Secondary Seal
Temperature Range,−29℃ to +150℃ (Seat dependent)
Testing Standard,API 598 / API 6D (High Pressure Gas Test)
Fugitive Emissions,ISO 15848-1 Compliant
Operation,Heavy Duty Lever or Worm Gearbox
Mounting Pad,ISO 5211 for Actuation
Bolting Material,ASTM A193 B8 (Stainless Steel)
