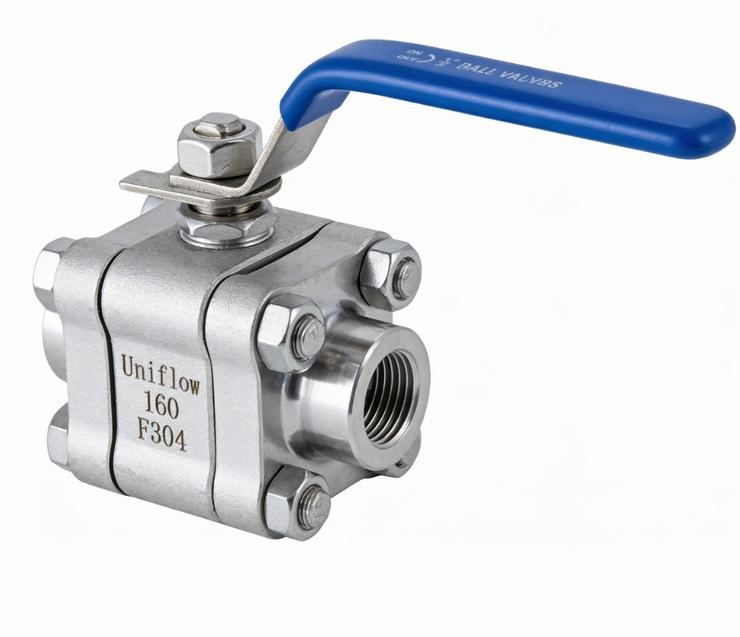

PN160 3-piece Forged stainless steel F304 Ball valve

Technical Attributes: PN160 Forged F304 3-Piece Ball Valve

Body Material,ASTM A182-F304 (Forged Stainless Steel)

Nominal Pressure,PN160 (16.0 MPa / 2320 PSI)

Construction,3-Piece Bolted (Center Body + Two End Caps)

End Connections,NPT/BSP Threaded or Socket Weld (SW)

Bore Design,Full Bore (Maximum Flow Efficiency)

Size Range,"1/4"" to 2"" (DN8 - DN50)"

Ball Material,ASTM A182-F304 / F316

Seat Material,PEEK or Devlon (High-Pressure Grade)

Stem Design,Blow-out Proof Stem

Body Seals,PTFE / Graphite (High Temp Optional)

Anti-Static,Integrated Ball-Stem-Body Grounding

Temperature Range,−29℃ to +180℃ (PEEK up to 250℃)

Testing Standard,API 598 / EN 12266-1

Design Standard,ASME B16.34 / ISO 17292

Operation,Heavy Duty Lever with Locking Device

Mounting Pad,ISO 5211 (For Actuator Mounting)

Surface Finish,Machined / Pickled and Passivated

Bolt/Nut Material,ASTM A193 B8 / A194 8 (Stainless Steel)

Stem Packing,PTFE / Flexible Graphite

Service Media,"Water, Oil, Gas, Corrosive Chemicals"

Fire Safety,Design meets API 607 (Optional)
